ACDA56-41SURKWA-F01 - Kingbright

Description: Display Modules - LED Character and Numeric Red 7-Segment 2 Character Common Anode 1.95V 20mA 0.669" H x 0.988" W x 0.148" D (17.00mm x 25.10mm x 3.75mm) 20-SMD, No Lead

Download ACDA56-41SURKWA-F01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

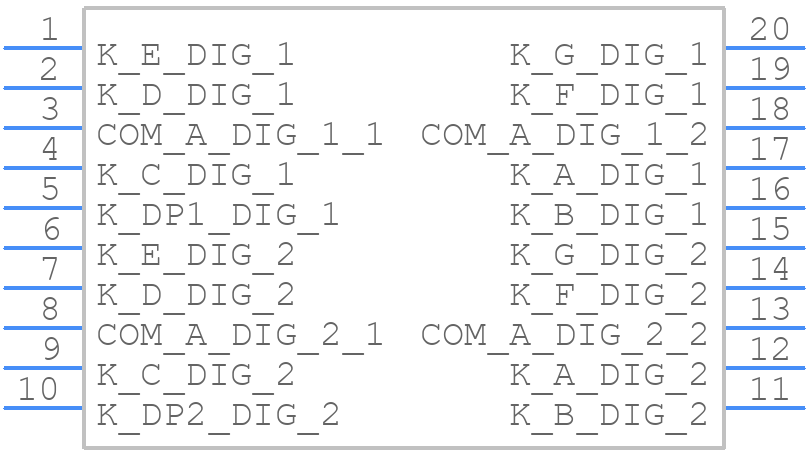

ACDA56-41SURKWA-F01 - Kingbright - PCB symbol
click to zoom
PCB Footprints

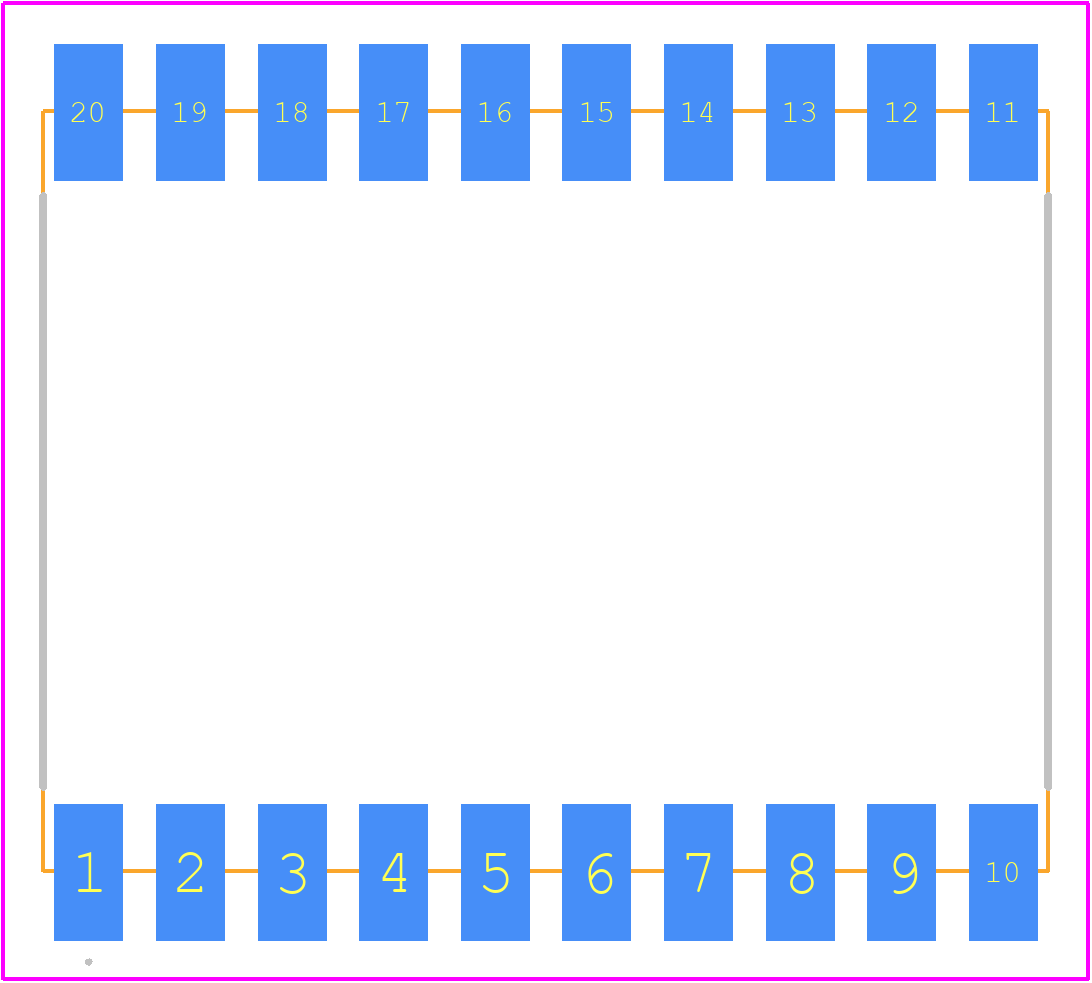

ACDA56-41SURKWA-F01 - Kingbright PCB footprint - Other - Other - ACDA56-41SURKWA-F01-1
click to zoom
3D Models
ACDA56-41SURKWA-F01 - Kingbright - 3D model - Other - ACDA56-41SURKWA-F01-1
click to zoom

ACDA56-41SURKWA-F01 Details

  • Manufacturer Part Number:

    ACDA56-41SURKWA-F01

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-20

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY
