ACDC02-41SGWA-F01 footprint, schematic symbol and 3D model by Kingbright

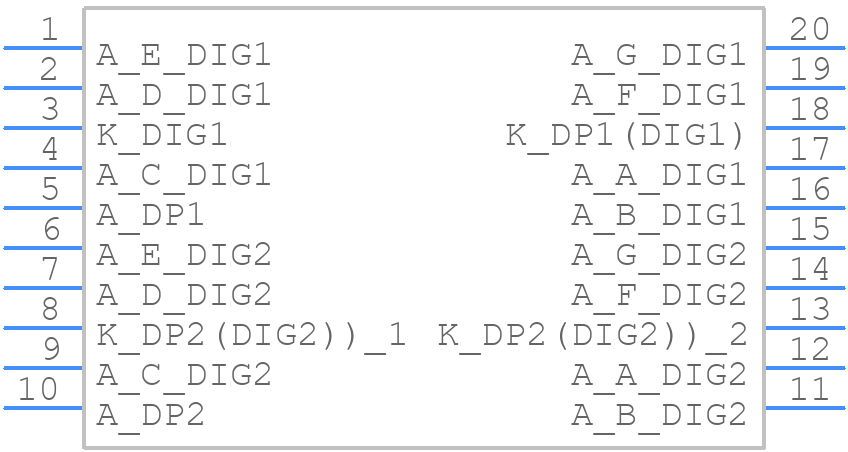

Symbol

PCB Footprints

3D Models

ACDC02-41SGWA-F01 Details

The recommended operating temperature range for the ACDC02-41SGWA-F01 is -20°C to 70°C.
To ensure reliability in high-humidity environments, it is recommended to apply a conformal coating to the display and ensure good sealing of the display module.
The maximum allowable voltage for the ACDC02-41SGWA-F01 is 5.5V.
To prevent damage during soldering, it is recommended to use a soldering iron with a temperature below 260°C and avoid applying excessive force or pressure to the display.
The recommended storage condition for the ACDC02-41SGWA-F01 is in a dry, cool place with a temperature range of 10°C to 30°C and humidity below 60%.
