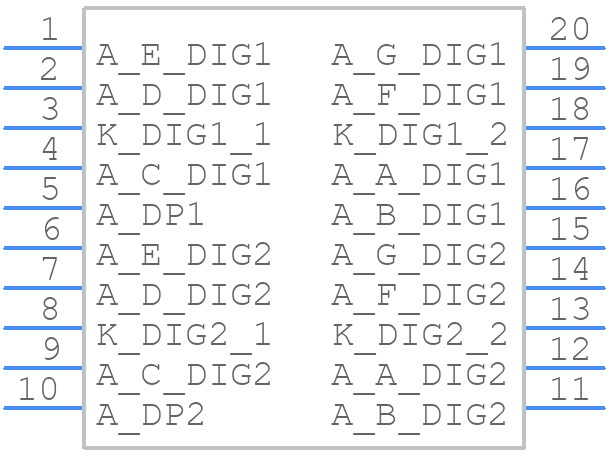

Symbol

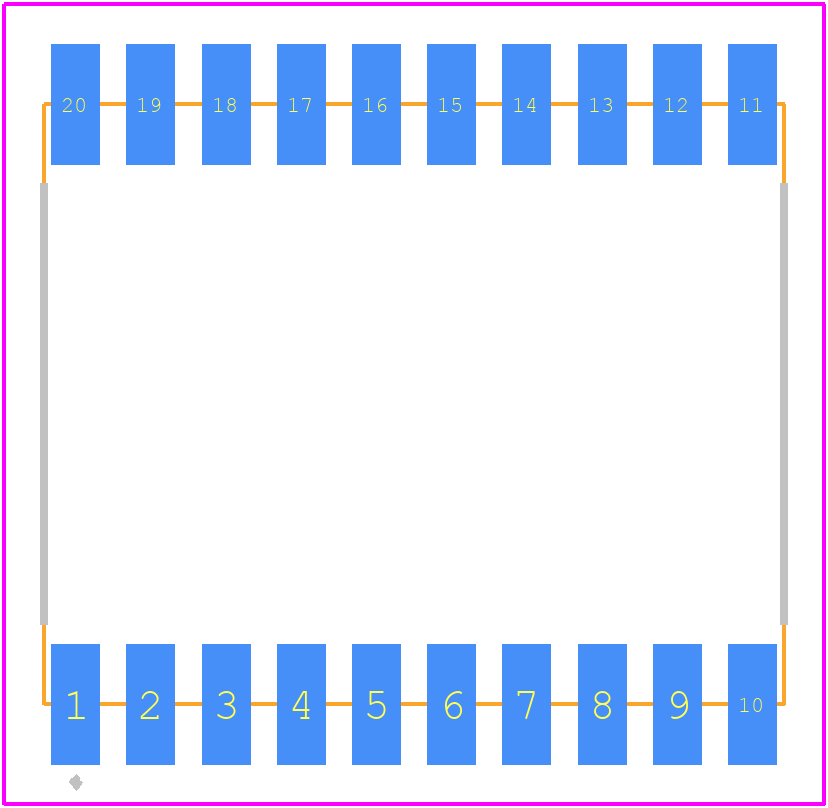

PCB Footprints

3D Models

ACDC04-41SRWA-F01 Details

The recommended operating temperature range for the ACDC04-41SRWA-F01 is -20°C to 70°C, with a storage temperature range of -30°C to 80°C.
To ensure reliability in high-humidity environments, it is recommended to apply a conformal coating to the display, and to follow proper storage and handling procedures to prevent moisture ingress.
The typical lifespan of the ACDC04-41SRWA-F01 is around 50,000 to 100,000 hours, depending on operating conditions and usage.
While the ACDC04-41SRWA-F01 is not specifically designed for outdoor use, it can be used in outdoor applications with proper protection from environmental factors such as UV radiation, moisture, and extreme temperatures.
The ACDC04-41SRWA-F01 can be interfaced with a microcontroller using a serial interface such as SPI or I2C, depending on the specific requirements of the application.

Community Provided

System Verified

Community Approved

Use the download button to access the ACDC04-41SRWA-F01 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ACDC0, or try a keyword search, such as LED Displays
