ACPL-3130-360E - Avago Technologies

Description: Logic Output Optocouplers 2.5A IGBT Gate Drive

Download ACPL-3130-360E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

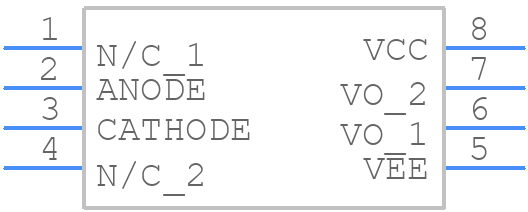

ACPL-3130-360E - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
ACPL-3130-360E - Avago Technologies PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - HCPL-2201-000E
click to zoom
3D Models
ACPL-3130-360E - Avago Technologies - 3D model - Dual-In-Line Packages - HCPL-2201-000E
click to zoom

ACPL-3130-360E Details

  • Manufacturer Part Number:

    ACPL-3130-360E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, ROHS COMPLIANT, SURFACE MOUNT, DIP-8

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    7

  • Additional Feature:

    UL RECOGNIZED, VDE APPROVED

  • Configuration:

    COMPLEX

  • Forward Current-Max:

    0.016 A

  • Isolation Voltage-Max:

    3750 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.25 W

  • Response Time-Nom:

    5e-7 ns

  • Supply Voltage-Min:

    15 V

  • Supply Voltage-Nom:

    30 V

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN

ACPL-3130-360E Frequently Asked Questions (FAQs)

  • Broadcom recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a 50Ω impedance-controlled trace for the output signal.
  • To ensure reliable operation in high-temperature environments, it's recommended to follow proper thermal management practices, such as providing adequate heat sinking and airflow. Additionally, the device should be operated within its specified temperature range of -40°C to 125°C.
  • The maximum allowable voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device.
  • Yes, the ACPL-3130-360E is designed for galvanic isolation and can be used in systems that require electrical isolation between the input and output.
  • The typical propagation delay of the ACPL-3130-360E is around 30ns. However, this value can vary depending on the specific application and operating conditions.
