A good PCB layout for the ACPL-827-300E involves keeping the input and output circuits separate, using a ground plane, and minimizing the length of the signal traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure reliability in high-temperature applications, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, the device should be operated within its recommended temperature range.
The ACPL-827-300E has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. This includes using ESD-safe materials, grounding oneself before handling the device, and using ESD-protective packaging.
Yes, the ACPL-827-300E is designed to provide high common-mode transient immunity, making it suitable for applications that require high noise immunity, such as in industrial control systems or in automotive systems.
The recommended power-up sequence for the ACPL-827-300E is to apply the VCC supply voltage before applying the input signal. This ensures that the internal circuitry is properly initialized and ready to operate.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACPL-827-300E Overview

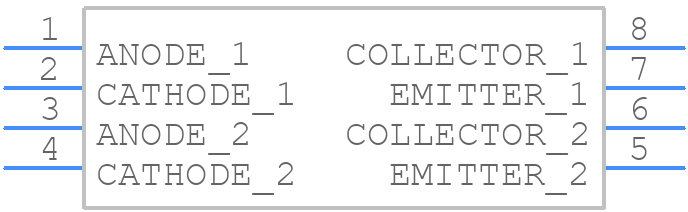

Use the download button to access the ACPL-827-300E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-,
or try a keyword search, such as Optocoupler
