ACPL-844-000E - Avago Technologies

Description: ACPL-844-000E AC Input Transistor Output Quad Optocoupler, Through Hole, 16-Pin PDIP

Download ACPL-844-000E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

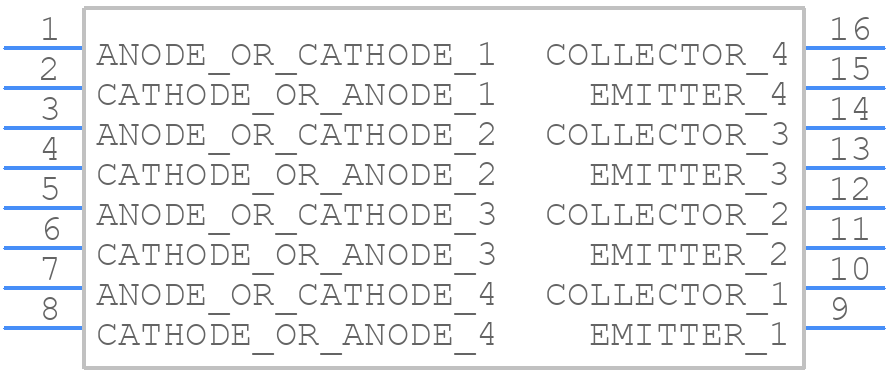

Symbol
ACPL-844-000E - Avago Technologies - PCB symbol
click to zoom

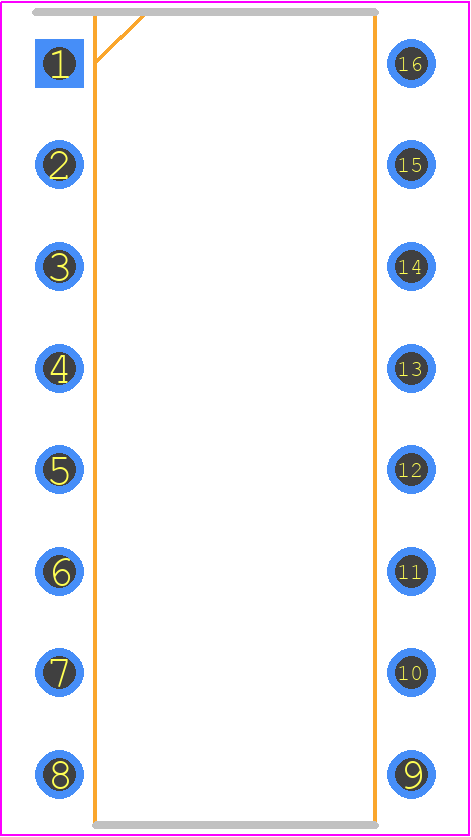

PCB Footprints
ACPL-844-000E - Avago Technologies PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - dip16-
click to zoom
3D Models
ACPL-844-000E - Avago Technologies - 3D model - Dual-In-Line Packages - dip16-
click to zoom

ACPL-844-000E Details

  • Manufacturer Part Number:

    ACPL-844-000E

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, ROHS COMPLIANT, DIP-16

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    6

  • Additional Feature:

    UL RECOGNIZED

  • Coll-Emtr Bkdn Voltage-Min:

    70 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Min:

    20%

  • Current Transfer Ratio-Nom:

    20%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.05 A

  • Forward Voltage-Max:

    1.4 V

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    4

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.000018 s

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

ACPL-844-000E Frequently Asked Questions (FAQs)

  • Broadcom recommends a PCB layout with a solid ground plane, minimal track length, and a 50-ohm transmission line impedance to ensure optimal performance and minimize signal distortion.
  • To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and keeping the device within its specified operating temperature range.
  • The maximum allowable voltage on the VCC pin of the ACPL-844-000E is 5.5V. Exceeding this voltage may damage the device or affect its reliability.
  • No, the ACPL-844-000E is designed for isolated applications only. Using it in a non-isolated application may compromise the safety and reliability of the system.
  • To troubleshoot issues with the ACPL-844-000E, check the PCB layout, ensure proper power supply and grounding, verify the input signal integrity, and use oscilloscope or logic analyzer to debug the signal transmission.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACPL-844-000E Overview

Use the download button to access the ACPL-844-000E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-, or try a keyword search, such as Optocoupler
