ACPL-K33T-060E - Avago Technologies

Description: Logic Output Optocouplers Automotive Optocoupler IEC LF

Download ACPL-K33T-060E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

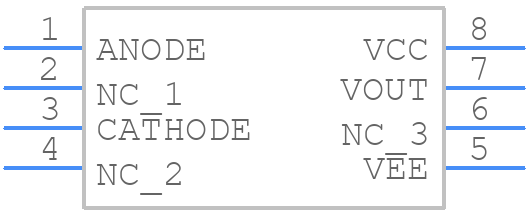

ACPL-K33T-060E - Avago Technologies - PCB symbol
click to zoom
PCB Footprints

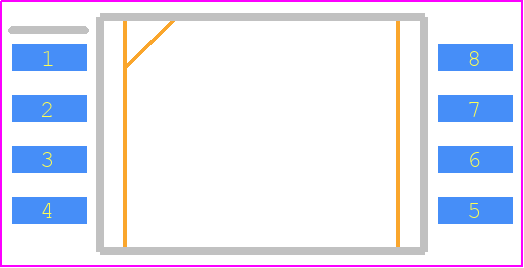

ACPL-K33T-060E - Avago Technologies PCB footprint - Small Outline Packages - Small Outline Packages - ACPL-K33T-060E-1
click to zoom
3D Models
ACPL-K33T-060E - Avago Technologies - 3D model - Small Outline Packages - ACPL-K33T-060E-1
click to zoom

ACPL-K33T-060E Details

  • Manufacturer Part Number:

    ACPL-K33T-060E

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    9

  • Additional Feature:

    AEC-Q100, UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.02 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TUBE

  • Response Time-Nom:

    1.5e-8 ns

  • Supply Voltage-Min:

    15 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Pure Matte Tin (Sn)

ACPL-K33T-060E Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the ACPL-K33T-060E is -40°C to 100°C.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current handling capability and to provide adequate heat sinking to prevent overheating.
  • The maximum allowable voltage for the ACPL-K33T-060E is 60V, as specified in the datasheet.
  • To choose the correct current limiting resistor, calculate the required resistance value based on the desired LED current and the voltage supply, using Ohm's law (R = V / I).
  • The typical propagation delay time for the ACPL-K33T-060E is around 10-20 μs, depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACPL-K33T-060E Overview

Use the download button to access the ACPL-K33T-060E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-, or try a keyword search, such as Optocoupler
