ACPL-K43T-000E - Avago Technologies

Description: Broadcom ACPL-K43T-000E AC/DC Input, Phototransistor Output Optocoupler, Surface Mount, 8-Pin SSO

Download ACPL-K43T-000E Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ACPL-K43T-000E model

Email notifications will be applied after download.

Send part feedback

Symbol

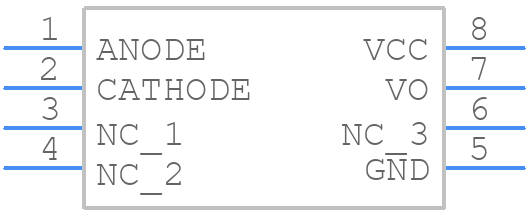

ACPL-K43T-000E - Avago Technologies - PCB symbol

PCB Footprints

ACPL-K43T-000E - Avago Technologies PCB footprint - Small Outline Packages - Small Outline Packages - STRETCHED SO-8

3D Models

ACPL-K43T-000E - Avago Technologies - 3D model - Small Outline Packages - STRETCHED SO-8

Datasheet Download Datasheet
Stock & Prices Price & Stock for ACPL-K43T-000E
Part Number ACPL-K43T-000E
Manufacturer Avago Technologies
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - STRETCHED SO-8
Released Date May 12, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ACPL-K43T-000E Details

Manufacturer Part Number:
ACPL-K43T-000E
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, PLASTIC, SOP-8
Reach Compliance Code:
Compliant
Country Of Origin:
Philippines, Singapore, Thailand
HTS Code:
8541.40.80.00
Manufacturer:
Avago Technologies
YTEOL:
9
Additional Feature:
UL RECOGNIZED, HIGH RELIABILITY
Configuration:
SINGLE
Current Transfer Ratio-Min:
24%
Data Rate-Nom:
1 MBps
Forward Current-Max:
0.02 A
Forward Voltage-Max:
1.75 V
Isolation Voltage-Max:
5000 V
JESD-609 Code:
e3
Mounting Feature:
SURFACE MOUNT
Number of Elements:
1
Number of Functions:
1
On-State Current-Max:
0.008 A
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
LOGIC IC OUTPUT OPTOCOUPLER
Power Dissipation-Max:
0.1 W
Surface Mount:
YES
Terminal Finish:
Tin (Sn)

ACPL-K43T-000E Frequently Asked Questions (FAQs)

The recommended operating temperature range for the ACPL-K43T-000E is -40°C to 100°C.
To ensure reliable operation in high-temperature environments, it is recommended to derate the device's current handling capability and to provide adequate heat sinking.
The maximum allowable voltage for the ACPL-K43T-000E is 5.5V.
The correct current-limiting resistor for the ACPL-K43T-000E can be chosen by considering the maximum allowable current and voltage ratings of the device, as well as the specific application requirements.
The typical propagation delay time for the ACPL-K43T-000E is around 10-15 μs.

Trust Checks

Community Provided

System Verified

Community Approved

ACPL-K43T-000E Overview

Use the download button to access the ACPL-K43T-000E schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-, or try a keyword search, such as Optocoupler
