A good PCB layout for the ACPL-K73L-060E involves keeping the input and output circuits separate, using a ground plane, and minimizing track lengths and widths to reduce electromagnetic interference (EMI).
To ensure reliable operation in high-temperature environments, ensure that the ACPL-K73L-060E is operated within its recommended temperature range (-40°C to 100°C), and consider using thermal management techniques such as heat sinks or thermal interfaces.
When using the ACPL-K73L-060E in a safety-critical application, ensure that the device is used within its recommended specifications, and consider implementing redundant or fault-tolerant designs to mitigate the risk of device failure.
To troubleshoot issues with the ACPL-K73L-060E, check the input voltage, output load, and PCB layout for any anomalies or deviations from the recommended design. Use oscilloscopes or logic analyzers to monitor the input and output signals, and consult the datasheet and application notes for guidance.
The ACPL-K73L-060E is a commercial-grade device, but it can be used in high-reliability or aerospace applications with proper design, testing, and qualification. Consult with Broadcom Limited or a qualified reliability engineer to ensure the device meets the required standards and regulations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACPL-K73L-060E Overview

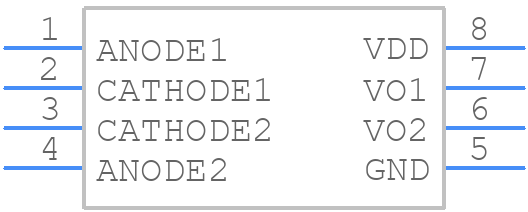

Use the download button to access the ACPL-K73L-060E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPL-,
or try a keyword search, such as Optocoupler
