ACPL337J - Broadcom Pi

Description: 4.0 Amp Gate Drive Optocoupler with Integrated (VCE) Desaturation Detection, Active Miller Clamping, Fault and UVLO Status Feedback

Download ACPL337J Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ACPL337J model

Email notifications will be applied after download.

Send part feedback

Symbol

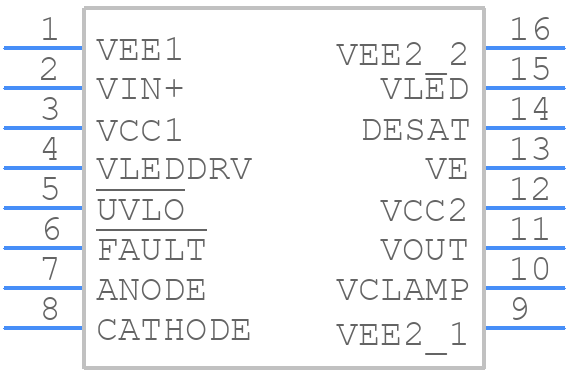

ACPL337J - Broadcom Pi - PCB symbol

PCB Footprints

ACPL337J - Broadcom Pi PCB footprint - Small Outline Packages - Small Outline Packages - ACPL-337J 16-Lead Surface Mount Package

3D Models

ACPL337J - Broadcom Pi - 3D model - Small Outline Packages - ACPL-337J 16-Lead Surface Mount Package

Datasheet Download Datasheet
Stock & Prices Price & Stock for ACPL337J
Part Number ACPL337J
Manufacturer Broadcom Pi
Pin Count 16
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - ACPL-337J 16-Lead Surface Mount Package
Released Date Feb 23, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ACPL337J Details

Manufacturer Part Number:
ACPL337J
Manufacturer:
Raspberry Pi

Trust Checks

Expert Contribution

System Verified

Community Approved

ACPL337J Overview

Use the download button to access the ACPL337J schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ACPL3, or try a keyword search, such as MOSFET Drivers
