ACPSA04-41CGKWA - Kingbright

Description: LED Displays & Accessories AlphaNum Green 570nm Common Anode

Download ACPSA04-41CGKWA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ACPSA04-41CGKWA model

Email notifications will be applied after download.

Send part feedback

Symbol

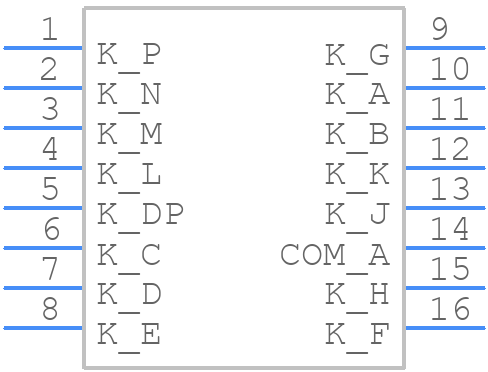

ACPSA04-41CGKWA - Kingbright - PCB symbol

PCB Footprints

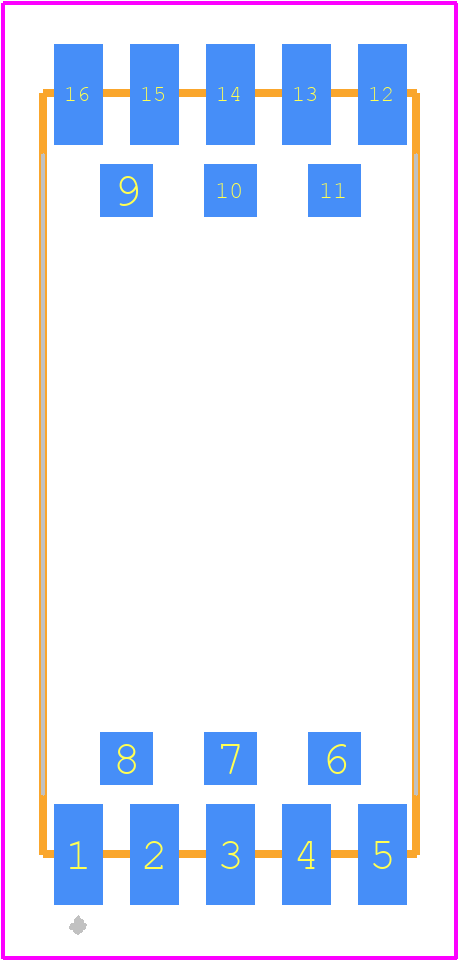

ACPSA04-41CGKWA - Kingbright PCB footprint - Other - Other - ACPSA04-41CGKWA-1

3D Models

ACPSA04-41CGKWA - Kingbright - 3D model - Other - ACPSA04-41CGKWA-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for ACPSA04-41CGKWA
Part Number ACPSA04-41CGKWA
Manufacturer Kingbright
Pin Count 16
Part Category Display
Package Category Other
Footprint Name Other - ACPSA04-41CGKWA-1
Released Date Oct 11, 2020
Last Modified Date Jun 22, 2023 10:55 AM UTC
Pinout / Pin List Click Here (Member Only)

ACPSA04-41CGKWA Details

Manufacturer Part Number:
ACPSA04-41CGKWA
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
Package Description:
ROHS COMPLIANT, SURFACE MOUNT PACKAGE-16
Country Of Origin:
Mainland China
HTS Code:
8541.40.20.00
Manufacturer:
Kingbright
YTEOL:
5.87
Color:
GREEN
Color@Wavelength:
Green-Yellow
Configuration:
COMMON ANODE, 1 DIGIT WITH DECIMAL POINT
Display Height:
10.16 mm
Forward Current-Max:
0.03 A
Number of Functions:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
14 SEG ALPHANUMERIC LED DISPLAY

ACPSA04-41CGKWA Frequently Asked Questions (FAQs)

The recommended storage temperature range for ACPSA04-41CGKWA is -40°C to 100°C.
Yes, ACPSA04-41CGKWA is suitable for outdoor applications due to its high luminous intensity and resistance to environmental factors like moisture and UV radiation.
The typical forward voltage drop for ACPSA04-41CGKWA is around 2.0-2.5V at a forward current of 20mA.
Yes, ACPSA04-41CGKWA is compatible with lead-free soldering processes, making it suitable for RoHS-compliant designs.
The maximum allowable reverse voltage for ACPSA04-41CGKWA is 5V.
