ACPSA04-41SEKWA - Kingbright

Description: Display Modules - LED Character and Numeric Orange 14-Segment, Alphanumeric 1 Character Common Anode 2.1V 20mA 0.512" H x 0.366" W x 0.148" D (13.00mm x 9.30mm x 3.75mm) 16-SMD, No Lead

Download ACPSA04-41SEKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

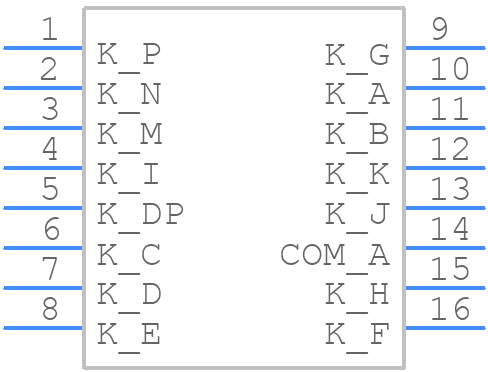

ACPSA04-41SEKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

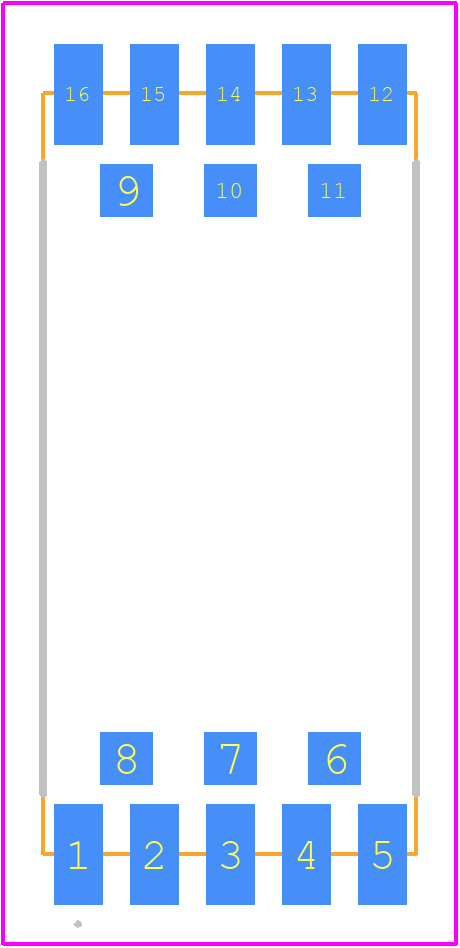

ACPSA04-41SEKWA - Kingbright PCB footprint - Other - Other - 16-SMD_2025-1
click to zoom
3D Models
ACPSA04-41SEKWA - Kingbright - 3D model - Other - 16-SMD_2025-1
click to zoom

ACPSA04-41SEKWA Details

  • Manufacturer Part Number:

    ACPSA04-41SEKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-16

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    5.87

  • Color:

    SUPER BRIGHT ORANGE

  • Color@Wavelength:

    Amber

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    10.16 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    14 SEG ALPHANUMERIC LED DISPLAY

ACPSA04-41SEKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for ACPSA04-41SEKWA is -30°C to 60°C, with a relative humidity of 60% or less.
  • While ACPSA04-41SEKWA is not specifically designed for outdoor use, it can be used in outdoor applications with proper protection from environmental factors such as moisture, UV, and extreme temperatures. A clear resin or conformal coating can be applied to protect the device.
  • The maximum soldering temperature for ACPSA04-41SEKWA is 260°C for 3 seconds, with a peak temperature of 240°C. It's essential to follow the recommended soldering profile to avoid damaging the device.
  • Yes, ACPSA04-41SEKWA is compatible with lead-free soldering. However, it's crucial to follow the recommended soldering profile and temperature to ensure reliable assembly.
  • The typical lifespan of ACPSA04-41SEKWA is around 50,000 hours, depending on the operating conditions, such as temperature, humidity, and drive current. Proper usage and maintenance can help extend the device's lifespan.
