ACPSA04-41SRWA - Kingbright

Description: DISPLAY 14SEG 0.4" SGL RED 16SMD

Download ACPSA04-41SRWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

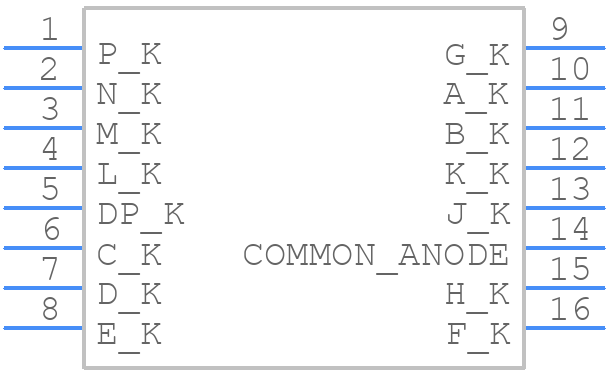

ACPSA04-41SRWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

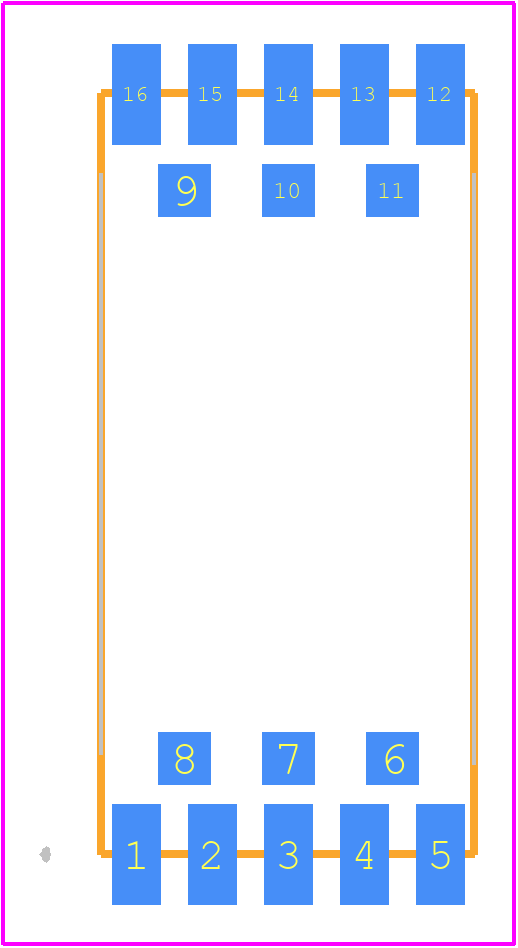

ACPSA04-41SRWA - Kingbright PCB footprint - Other - Other - ACPSA04-41SRWA-2
click to zoom
3D Models
ACPSA04-41SRWA - Kingbright - 3D model - Other - ACPSA04-41SRWA-2
click to zoom

ACPSA04-41SRWA Details

  • Manufacturer Part Number:

    ACPSA04-41SRWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    5.87

  • Color:

    SUPER BRIGHT RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    10.16 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    14 SEG ALPHANUMERIC LED DISPLAY

ACPSA04-41SRWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for ACPSA04-41SRWA is -40°C to 100°C.
  • Yes, the ACPSA04-41SRWA is suitable for outdoor use, but it's recommended to use a protective coating or enclosure to prevent moisture and UV damage.
  • The maximum forward current for ACPSA04-41SRWA is 30mA, but it's recommended to operate at 20mA or less for optimal performance and lifespan.
  • Yes, the ACPSA04-41SRWA is designed to withstand vibrations up to 10G, but it's recommended to secure the device properly to prevent mechanical stress.
  • Yes, the ACPSA04-41SRWA is RoHS and REACH compliant, making it suitable for use in EU and other regions with similar regulations.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACPSA04-41SRWA Overview

Use the download button to access the ACPSA04-41SRWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACPSA, or try a keyword search, such as LED Displays
