ACPSC04-41SURKWA - Kingbright

Description: DISPLAY 14SEG 0.4" SGL RED 16SMD

Download ACPSC04-41SURKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

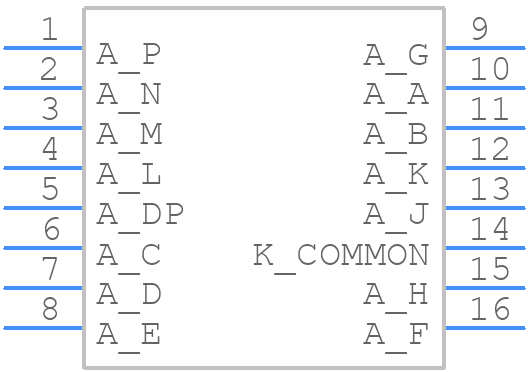

ACPSC04-41SURKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

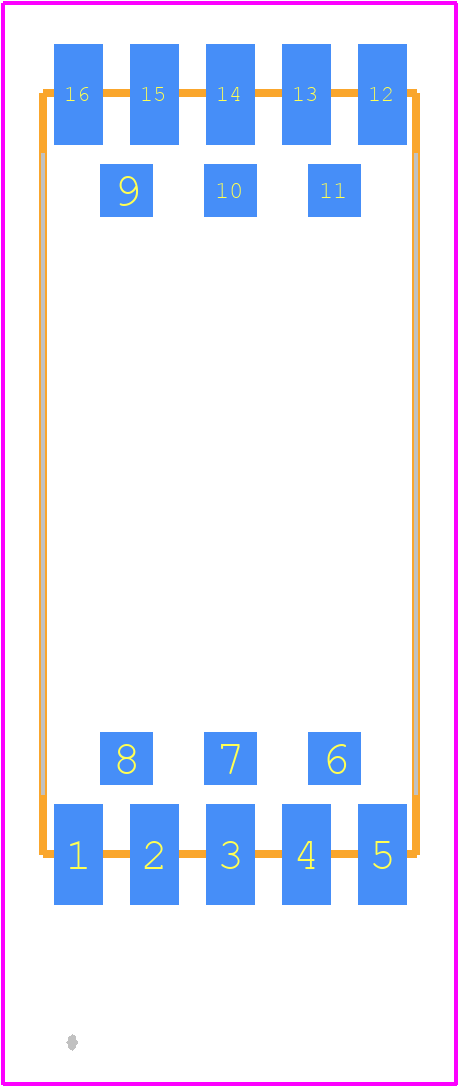

ACPSC04-41SURKWA - Kingbright PCB footprint - Other - Other - ACPSC04-41SURKWA-1
click to zoom
3D Models
ACPSC04-41SURKWA - Kingbright - 3D model - Other - ACPSC04-41SURKWA-1
click to zoom

ACPSC04-41SURKWA Details

  • Manufacturer Part Number:

    ACPSC04-41SURKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-16

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    5.87

  • Color:

    HYPER RED

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    10.16 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    14 SEG ALPHANUMERIC LED DISPLAY

ACPSC04-41SURKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for ACPSC04-41SURKWA is -20°C to 30°C, with a relative humidity of 60% or less.
  • While ACPSC04-41SURKWA is not specifically designed for outdoor use, it can be used in outdoor applications with proper protection from environmental factors such as moisture, UV, and extreme temperatures. A clear resin or conformal coating can be applied to protect the device.
  • The maximum soldering temperature for ACPSC04-41SURKWA is 260°C for 3 seconds. Exceeding this temperature can cause damage to the device.
  • Yes, ACPSC04-41SURKWA is compatible with lead-free soldering processes. However, the soldering profile should be adjusted according to the specific lead-free solder alloy used.
  • The typical junction temperature of ACPSC04-41SURKWA is 125°C. Operating the device above this temperature can reduce its lifespan and affect its performance.
