ACSA03-41SYKWA-F01 footprint, schematic symbol and 3D model by Kingbright

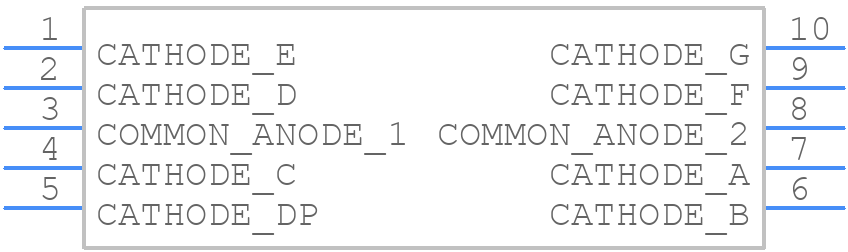

Symbol

PCB Footprints

3D Models

ACSA03-41SYKWA-F01 Details

The recommended storage temperature for ACSA03-41SYKWA-F01 is -20°C to 60°C, with a relative humidity of 60% or less.
Yes, ACSA03-41SYKWA-F01 is suitable for outdoor applications, but it's essential to ensure proper sealing and protection from moisture and extreme temperatures.
The typical junction temperature of ACSA03-41SYKWA-F01 is 125°C, but it's recommended to operate the device within a junction temperature range of -40°C to 100°C for optimal performance and reliability.
Yes, ACSA03-41SYKWA-F01 is compatible with lead-free soldering processes, but it's essential to follow the recommended soldering temperature profile to avoid damaging the device.
The recommended reflow soldering temperature profile for ACSA03-41SYKWA-F01 is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C.

Expert Contribution

System Verified

Community Approved

Use the download button to access the ACSA03-41SYKWA-F01 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ACSA0, or try a keyword search, such as LED Displays
