ACSA04-41SURKWA-F01 - Kingbright

Description: LED Displays & Accessories .4" SINGLE DIGIT RED

Download ACSA04-41SURKWA-F01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

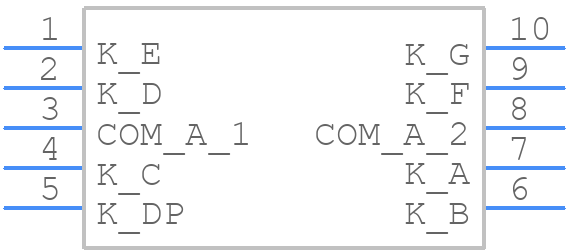

Symbol
ACSA04-41SURKWA-F01 - Kingbright - PCB symbol
click to zoom
PCB Footprints
ACSA04-41SURKWA-F01 - Kingbright PCB footprint - Other - Other - ACSA04-41SURKWA-F01-3
click to zoom
3D Models
ACSA04-41SURKWA-F01 - Kingbright - 3D model - Other - ACSA04-41SURKWA-F01-3
click to zoom

ACSA04-41SURKWA-F01 Details

  • Manufacturer Part Number:

    ACSA04-41SURKWA-F01

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    10.16 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

ACSA04-41SURKWA-F01 Frequently Asked Questions (FAQs)

  • The recommended storage temperature for ACSA04-41SURKWA-F01 is -20°C to 30°C.
  • Yes, the ACSA04-41SURKWA-F01 is suitable for outdoor use, but it's recommended to use a protective coating or enclosure to prevent moisture and UV damage.
  • The maximum operating temperature for ACSA04-41SURKWA-F01 is 85°C.
  • Yes, the ACSA04-41SURKWA-F01 can operate in a high-humidity environment, but it's recommended to use a protective coating or enclosure to prevent moisture damage.
  • The typical lifespan of the ACSA04-41SURKWA-F01 is 50,000 hours, but this can vary depending on operating conditions and usage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACSA04-41SURKWA-F01 Overview

Use the download button to access the ACSA04-41SURKWA-F01 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACSA0, or try a keyword search, such as LED Displays
