ACSA04-41SYKWA-F01 footprint, schematic symbol and 3D model by Kingbright

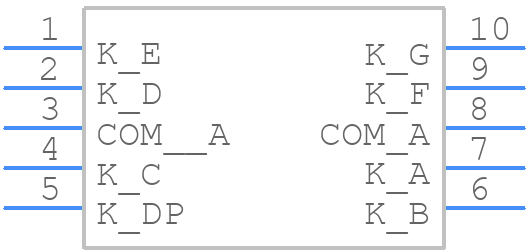

Symbol

PCB Footprints

3D Models

ACSA04-41SYKWA-F01 Details

The recommended storage temperature for ACSA04-41SYKWA-F01 is -20°C to 60°C, with a relative humidity of 60% or less.
Yes, ACSA04-41SYKWA-F01 is suitable for outdoor applications, but it's essential to ensure proper sealing and protection from moisture and UV radiation to maintain its performance and lifespan.
The typical junction temperature of ACSA04-41SYKWA-F01 is around 85°C, but it's recommended to keep it below 80°C for optimal performance and reliability.
Yes, ACSA04-41SYKWA-F01 is compatible with lead-free soldering processes, but it's essential to follow the recommended soldering profile and temperature to avoid damaging the component.
The recommended reflow soldering temperature profile for ACSA04-41SYKWA-F01 is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C.

Community Provided

System Verified

Community Approved

Use the download button to access the ACSA04-41SYKWA-F01 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ACSA0, or try a keyword search, such as LED Displays
