ACSA08-51SURKWA - Kingbright

Description: LED Displays & Accessories Single Red 630nm Common Anode

Download ACSA08-51SURKWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

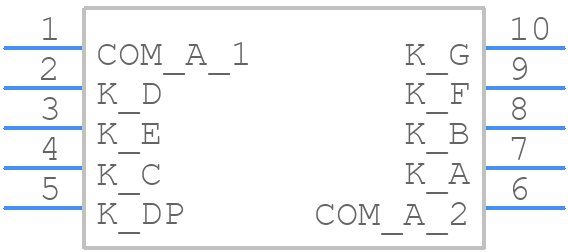

ACSA08-51SURKWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

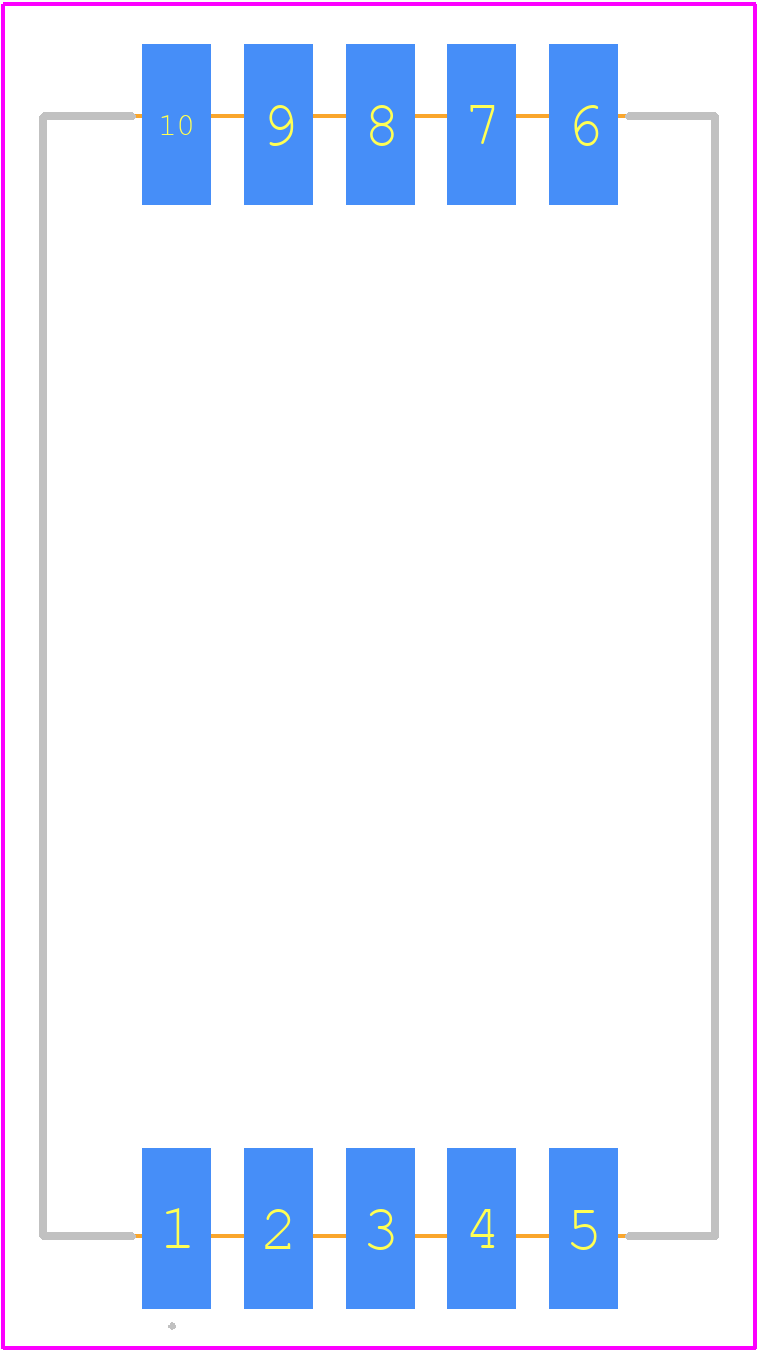

ACSA08-51SURKWA - Kingbright PCB footprint - Other - Other - ACSA08-51SURKWA-2
click to zoom
3D Models
ACSA08-51SURKWA - Kingbright - 3D model - Other - ACSA08-51SURKWA-2
click to zoom

ACSA08-51SURKWA Details

  • Manufacturer Part Number:

    ACSA08-51SURKWA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED

  • Configuration:

    COMMON ANODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    20.32 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

ACSA08-51SURKWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for ACSA08-51SURKWA is -30°C to 60°C, with a relative humidity of 60% or less.
  • Yes, ACSA08-51SURKWA is suitable for outdoor applications, but it's essential to ensure proper sealing and protection from moisture and UV radiation to maintain its performance and lifespan.
  • The typical junction temperature of ACSA08-51SURKWA is around 125°C, but it's recommended to keep it below 100°C for optimal performance and lifespan.
  • Yes, ACSA08-51SURKWA is compatible with lead-free soldering processes, but it's essential to follow the recommended soldering profile and temperature to avoid damaging the component.
  • The recommended reflow soldering temperature profile for ACSA08-51SURKWA is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACSA08-51SURKWA Overview

Use the download button to access the ACSA08-51SURKWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACSA0, or try a keyword search, such as LED Displays
