ACSA56-41QBWA/D-F01 footprint, schematic symbol and 3D model by Kingbright

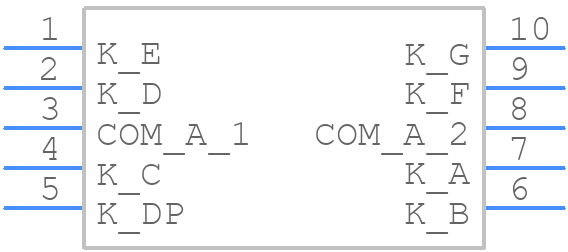

Symbol

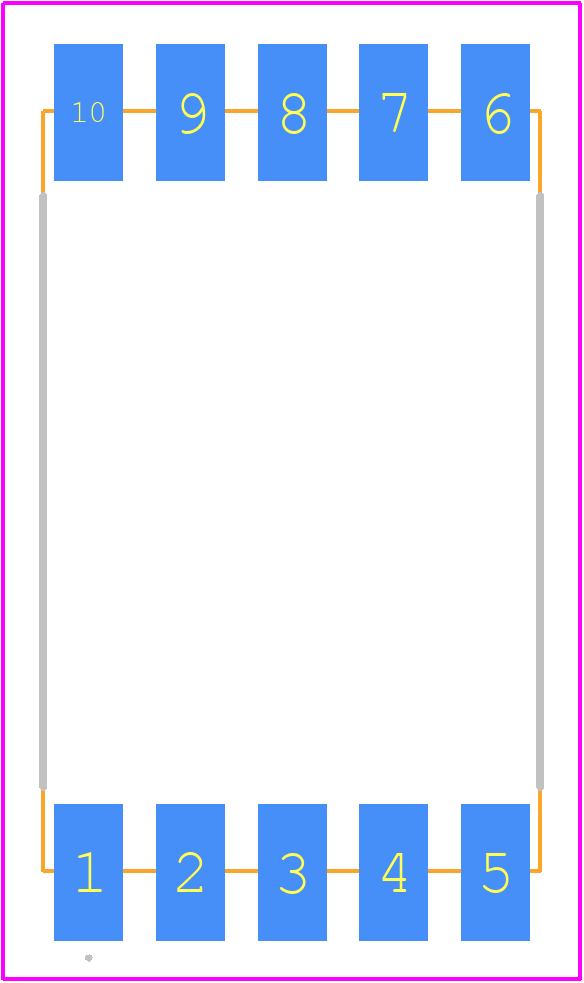

PCB Footprints

3D Models

ACSA56-41QBWA/D-F01 Details

The recommended storage temperature for ACSA56-41QBWA/D-F01 is -30°C to 80°C, with a relative humidity of 60% or less.
Yes, ACSA56-41QBWA/D-F01 is suitable for outdoor applications, but it's essential to ensure proper sealing and protection from moisture and UV radiation to maintain its performance and lifespan.
The maximum soldering temperature for ACSA56-41QBWA/D-F01 is 260°C for 3 seconds, with a peak temperature of 240°C. It's essential to follow the recommended soldering profile to avoid damaging the component.
Yes, ACSA56-41QBWA/D-F01 is compatible with lead-free soldering. However, it's crucial to follow the recommended soldering profile and temperature to ensure reliable connections.
The typical lifespan of ACSA56-41QBWA/D-F01 is around 50,000 hours, depending on the operating conditions, such as temperature, humidity, and drive current.

Community Provided

System Verified

Community Approved

Use the download button to access the ACSA56-41QBWA/D-F01 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ACSA5, or try a keyword search, such as LED Displays
