ACSA56-51PBWA/A - Kingbright

Description: LED Displays & Accessories 0.56" SINGLE DIGIT BLUE SMD LED DISPLAY

Download ACSA56-51PBWA/A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

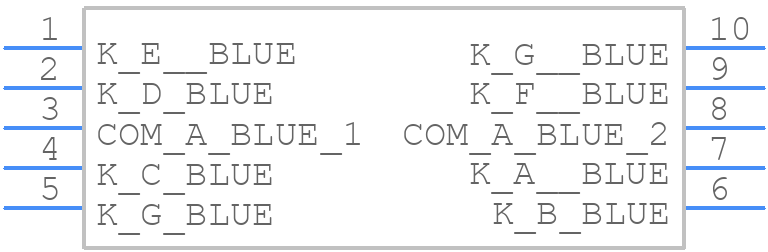

Symbol
ACSA56-51PBWA/A - Kingbright - PCB symbol
click to zoom

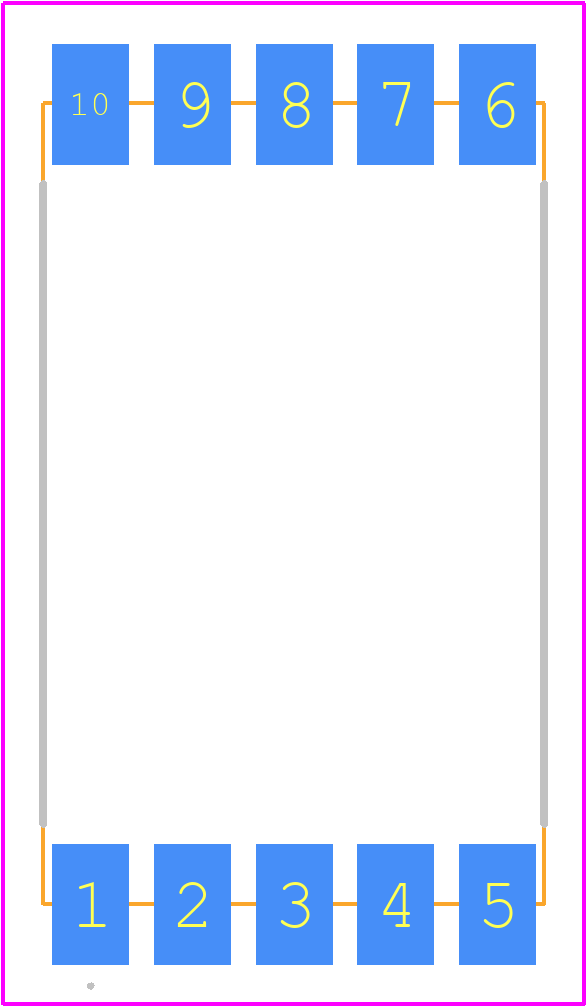

PCB Footprints
ACSA56-51PBWA/A - Kingbright PCB footprint - Other - Other - ACSA56-51PBWA/A-1
click to zoom
3D Models
ACSA56-51PBWA/A - Kingbright - 3D model - Other - ACSA56-51PBWA/A-1
click to zoom

ACSA56-51PBWA/A Details

  • Manufacturer Part Number:

    ACSA56-51PBWA/A

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    BLUE

  • Color@Wavelength:

    Blue

  • Configuration:

    COMMON ANODE, 1 DIGIT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    4 V

  • Luminous Intensity-Min:

    0.0014 cd

  • Luminous Intensity-Nom:

    4.0 mcd

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Packing Method:

    TR, 13 INCH

  • Peak Wavelength:

    468 nm

ACSA56-51PBWA/A Frequently Asked Questions (FAQs)

  • The recommended storage temperature for ACSA56-51PBWA/A is -30°C to 60°C, with a relative humidity of 60% or less.
  • Yes, ACSA56-51PBWA/A is suitable for outdoor applications, but it's recommended to use a protective coating or encapsulation to prevent moisture and UV damage.
  • The typical junction temperature of ACSA56-51PBWA/A is 125°C, but it's recommended to keep it below 100°C for optimal performance and lifespan.
  • Yes, ACSA56-51PBWA/A is compatible with lead-free soldering, but it's recommended to follow the manufacturer's recommended soldering profile to prevent damage.
  • The recommended reflow soldering temperature profile for ACSA56-51PBWA/A is 260°C peak temperature, with a dwell time of 10-30 seconds above 220°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACSA56-51PBWA/A Overview

Use the download button to access the ACSA56-51PBWA/A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACSA5, or try a keyword search, such as LED Displays
