ACSA56-51SURKWA - Kingbright

Description: Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.95V 20mA 0.669" H x 0.492" W x 0.094" D (17.00mm x 12.50mm x 2.40mm) 12-SMD, No Lead

Download ACSA56-51SURKWA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ACSA56-51SURKWA model

Email notifications will be applied after download.

Send part feedback

Symbol

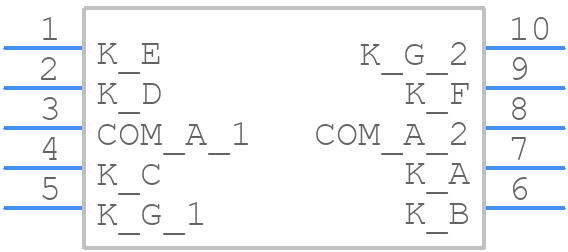

ACSA56-51SURKWA - Kingbright - PCB symbol

PCB Footprints

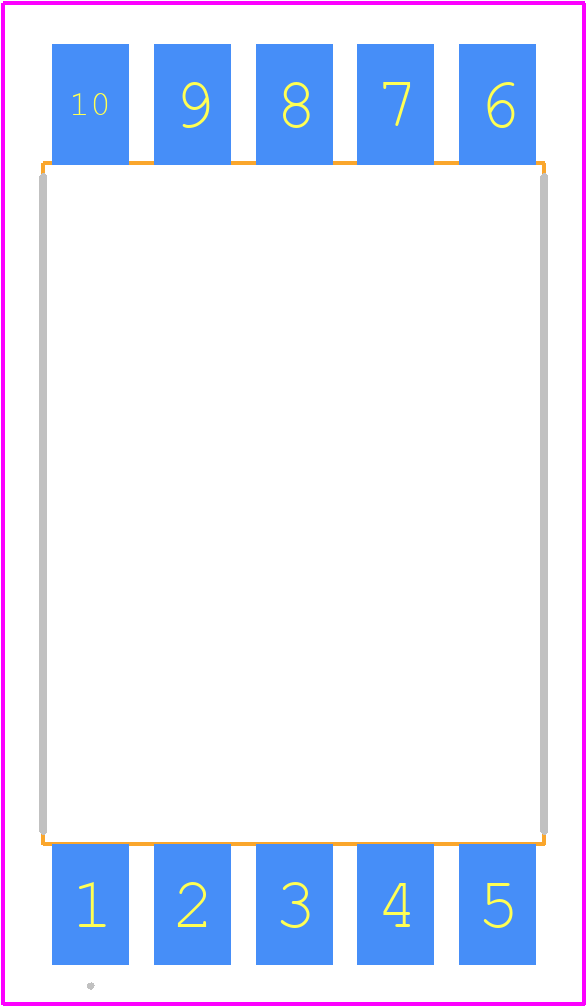

ACSA56-51SURKWA - Kingbright PCB footprint - Other - Other - ACSA56-51SURKWA

3D Models

ACSA56-51SURKWA - Kingbright - 3D model - Other - ACSA56-51SURKWA

Datasheet Download Datasheet
Stock & Prices Price & Stock for ACSA56-51SURKWA
Part Number ACSA56-51SURKWA
Manufacturer Kingbright
Pin Count 10
Part Category Display
Package Category Other
Footprint Name Other - ACSA56-51SURKWA
Released Date Apr 17, 2025
Last Modified Date Apr 17, 2025 1:30 PM UTC
Pinout / Pin List Click Here (Member Only)

ACSA56-51SURKWA Details

Manufacturer Part Number:
ACSA56-51SURKWA
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
HTS Code:
8541.40.20.00
Manufacturer:
Kingbright
YTEOL:
6
Color:
HYPER RED
Color@Wavelength:
Red
Configuration:
COMMON ANODE, 1 DIGIT
Display Height:
14.22 mm
Forward Current-Max:
0.03 A
Forward Voltage-Max:
2.5 V
Luminous Intensity-Min:
0.021 cd
Luminous Intensity-Nom:
76.0 mcd
Number of Characters:
1
Number of Functions:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
7 SEG NUMERIC LED DISPLAY
Packing Method:
TR, 13 INCH
Peak Wavelength:
645 nm

ACSA56-51SURKWA Frequently Asked Questions (FAQs)

The recommended storage temperature for ACSA56-51SURKWA is -40°C to 100°C.
Yes, ACSA56-51SURKWA is suitable for outdoor applications due to its high luminous intensity and resistance to environmental factors like moisture and UV.
The typical forward voltage of ACSA56-51SURKWA is 2.0-2.5V.
Yes, ACSA56-51SURKWA is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
The maximum allowable current for ACSA56-51SURKWA is 30mA.

Trust Checks

Community Provided

System Verified

Community Approved

ACSA56-51SURKWA Overview

Use the download button to access the ACSA56-51SURKWA schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ACSA5, or try a keyword search, such as LED Displays
