ACSC04-41SEKWA-F01 footprint, schematic symbol and 3D model by Kingbright

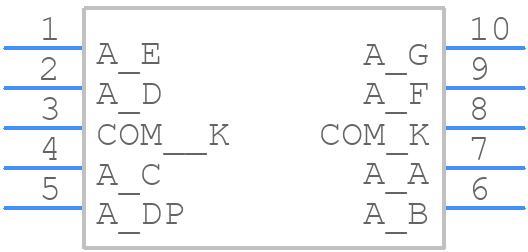

Symbol

PCB Footprints

3D Models

ACSC04-41SEKWA-F01 Details

The recommended operating temperature range for the ACSC04-41SEKWA-F01 is -20°C to 70°C, with a storage temperature range of -30°C to 80°C.
To ensure optimal reliability and lifespan, handle the ACSC04-41SEKWA-F01 by the edges, avoid touching the pins or LED surfaces, and store it in a dry, clean environment away from direct sunlight and moisture.
The typical viewing angle for the ACSC04-41SEKWA-F01 is 60° to 120°, depending on the specific application and environmental conditions.
While the ACSC04-41SEKWA-F01 is not specifically designed for outdoor use, it can be used in outdoor applications with proper protection from environmental factors such as moisture, UV radiation, and extreme temperatures.
The maximum allowable voltage for the ACSC04-41SEKWA-F01 is 5V, with a recommended operating voltage of 3.5V to 4.5V for optimal performance and reliability.

Community Provided

System Verified

Community Approved

Use the download button to access the ACSC04-41SEKWA-F01 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ACSC0, or try a keyword search, such as LED Displays
