ACSC04-41SRWA-F01 footprint, schematic symbol and 3D model by Kingbright

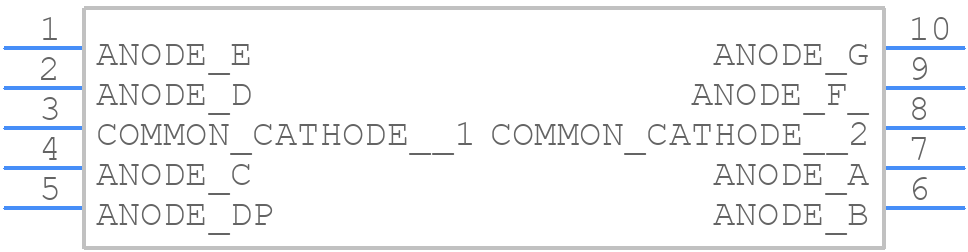

Symbol

PCB Footprints

3D Models

ACSC04-41SRWA-F01 Details

The recommended operating temperature range for the ACSC04-41SRWA-F01 is -20°C to 70°C, with a storage temperature range of -30°C to 80°C.
The ACSC04-41SRWA-F01 has a standard 7-segment LED display interface, which can be connected to a microcontroller using a 7-bit or 8-bit interface. You can use a serial or parallel interface, depending on your microcontroller's capabilities.
The typical current consumption of the ACSC04-41SRWA-F01 is around 20-30mA per segment, depending on the brightness setting and the number of segments lit. You can estimate the total current consumption based on your specific application.
The ACSC04-41SRWA-F01 has a water-clear lens and a wide viewing angle, making it suitable for indoor applications. However, it may not be suitable for outdoor use without additional protection, such as a UV-resistant coating or an enclosure, to protect it from environmental factors like sunlight, moisture, and temperature extremes.
The brightness of the ACSC04-41SRWA-F01 can be adjusted by controlling the current flowing through the LED segments. You can use a current-limiting resistor or a dedicated LED driver IC to adjust the brightness to your desired level.

Expert Contribution

System Verified

Community Approved

Use the download button to access the ACSC04-41SRWA-F01 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ACSC0, or try a keyword search, such as LED Displays
