ACSC56-41CGKWA-F01 - Kingbright

Description: LED Displays & Accessories Single Green 570nm Common Cathode

Download ACSC56-41CGKWA-F01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

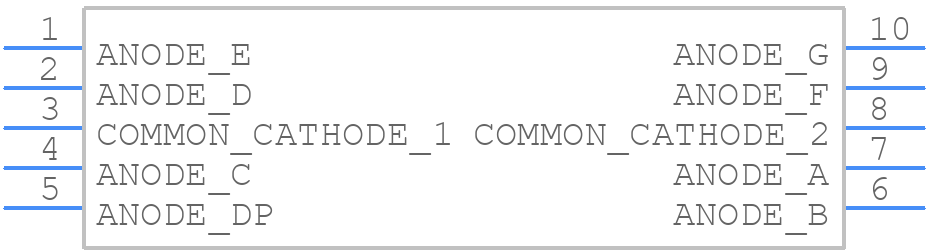

Symbol
ACSC56-41CGKWA-F01 - Kingbright - PCB symbol
click to zoom

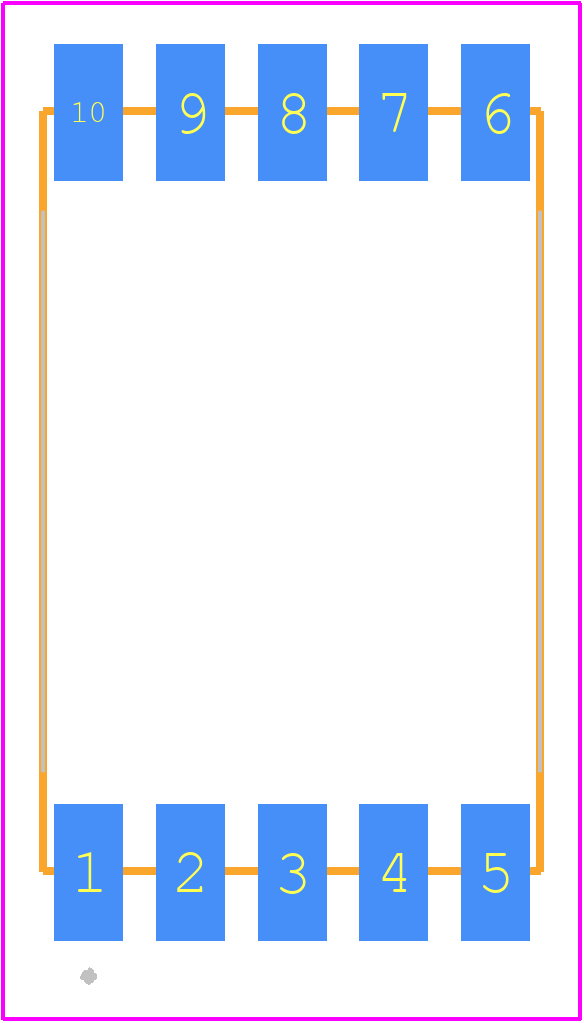

PCB Footprints
ACSC56-41CGKWA-F01 - Kingbright PCB footprint - Other - Other - ACSC56-41CGKWA-F01-1
click to zoom
3D Models
ACSC56-41CGKWA-F01 - Kingbright - 3D model - Other - ACSC56-41CGKWA-F01-1
click to zoom

ACSC56-41CGKWA-F01 Details

  • Manufacturer Part Number:

    ACSC56-41CGKWA-F01

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    GREEN

  • Color@Wavelength:

    Green-Yellow

  • Configuration:

    COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY
