ACSC56-41SRWA-F01 footprint, schematic symbol and 3D model by Kingbright

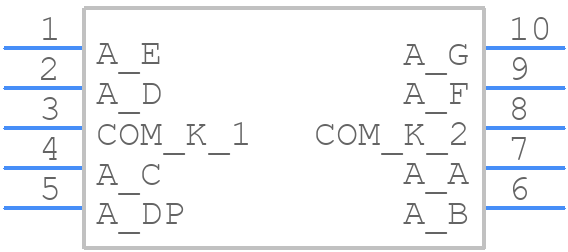

Symbol

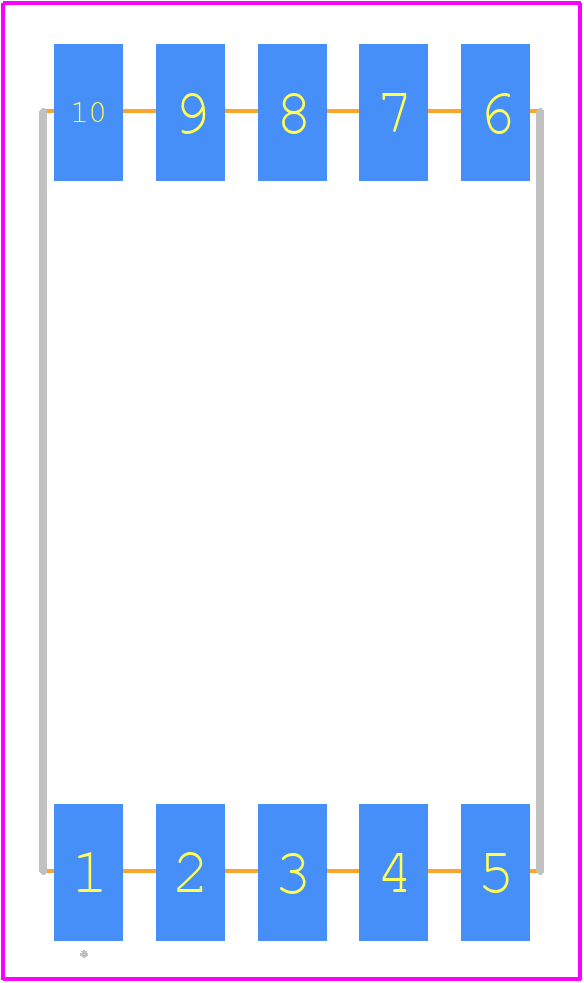

PCB Footprints

3D Models

ACSC56-41SRWA-F01 Details

The recommended storage temperature range is -30°C to 60°C.
Yes, the ACSC56-41SRWA-F01 is suitable for outdoor use, but it's recommended to use a protective coating or enclosure to prevent moisture and UV damage.
The maximum allowable voltage is 1.5 times the rated voltage, but it's recommended to operate within the specified voltage range to ensure reliability and lifespan.
Handle the device in an ESD-protected environment, wear an ESD wrist strap, and use ESD-safe packaging and tools to prevent damage.
The ACSC56-41SRWA-F01 is not designed for high-humidity environments. If used in such conditions, it may lead to reduced lifespan or failure. Consider using a humidity-resistant coating or enclosure.

Community Provided

System Verified

Community Approved

Use the download button to access the ACSC56-41SRWA-F01 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ACSC5, or try a keyword search, such as LED Displays
