ACSL-6300-00TE - Avago Technologies

Description: OPTOISO 2.5KV 3CH OPEN COLL 16SO

Download ACSL-6300-00TE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

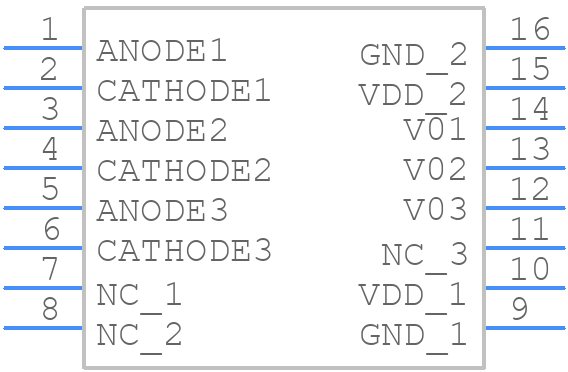

ACSL-6300-00TE - Avago Technologies - PCB symbol
click to zoom
PCB Footprints
ACSL-6300-00TE - Avago Technologies PCB footprint - Small Outline Packages - Small Outline Packages - Small Outline SO-16 Package
click to zoom
3D Models
ACSL-6300-00TE - Avago Technologies - 3D model - Small Outline Packages - Small Outline SO-16 Package
click to zoom

ACSL-6300-00TE Details

  • Manufacturer Part Number:

    ACSL-6300-00TE

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SOP-16

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    7

  • Additional Feature:

    TTL COMPATIBLE, UL RECOGNIZED

  • Configuration:

    SEPARATE, 3 CHANNELS

  • Data Rate-Nom:

    15 MBps

  • Forward Current-Max:

    0.015 A

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    3

  • Number of Functions:

    3

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.195 W

  • Response Time-Nom:

    1e-7 ns

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

ACSL-6300-00TE Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the ACSL-6300-00TE is -40°C to 125°C.
  • To ensure reliable operation in high-temperature environments, it is recommended to use a heat sink and ensure good thermal conductivity between the device and the heat sink. Additionally, follow the recommended PCB layout and thermal design guidelines.
  • The maximum current rating for the ACSL-6300-00TE is 1.5A per channel. However, it is recommended to derate the current based on the ambient temperature and other environmental factors.
  • To troubleshoot issues with the ACSL-6300-00TE, start by checking the power supply voltage, input voltage, and output voltage. Verify that the device is properly soldered and that there are no signs of physical damage. Use a logic analyzer or oscilloscope to monitor the device's behavior and identify any anomalies.
  • Yes, the ACSL-6300-00TE is suitable for use in high-reliability or safety-critical applications. However, it is essential to follow the recommended design guidelines, perform thorough testing and validation, and ensure compliance with relevant industry standards and regulations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACSL-6300-00TE Overview

Use the download button to access the ACSL-6300-00TE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACSL-, or try a keyword search, such as Optocoupler
