ACSL-6300-50TE - Avago Technologies

Description: High Speed Optocouplers 3.0V - 5.5V 15MBd

Download ACSL-6300-50TE Model

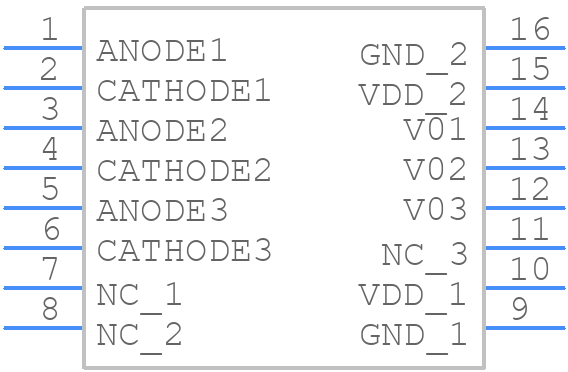

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ACSL-6300-50TE - Avago Technologies PCB footprint - Small Outline Packages - Small Outline Packages - SO-16-1
click to zoom
3D Models
ACSL-6300-50TE - Avago Technologies  - 3D model - Small Outline Packages - SO-16-1
click to zoom

ACSL-6300-50TE Details

  • Manufacturer Part Number:

    ACSL-6300-50TE

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, SOP-16

  • Reach Compliance Code:

    Compliant

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    Avago Technologies

  • YTEOL:

    7

  • Additional Feature:

    TTL COMPATIBLE, UL RECOGNIZED

  • Configuration:

    SEPARATE, 3 CHANNELS

  • Data Rate-Nom:

    15 MBps

  • Forward Current-Max:

    0.015 A

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    3

  • Number of Functions:

    3

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Power Dissipation-Max:

    0.195 W

  • Response Time-Nom:

    1e-7 ns

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

ACSL-6300-50TE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure that the device is operated within the recommended voltage and current ranges, and that the PCB is designed to minimize thermal resistance. Additionally, consider using thermal monitoring and shutdown circuits to prevent overheating.
  • The recommended soldering conditions are: peak temperature of 260°C, time above 217°C of 30 seconds, and a total process time of 60 seconds. Use a solder with a melting point of 217°C or higher.
  • Use ESD protection devices such as TVS diodes or ESD arrays on the input and output lines to protect the device from electrostatic discharge. Ensure that the ESD protection devices are rated for the maximum voltage and current of the device.
  • Use 0.1uF to 1uF decoupling capacitors with a voltage rating of 10V or higher, placed as close as possible to the device's power pins. Use multiple capacitors in parallel to achieve the desired capacitance value.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACSL-6300-50TE Overview

Use the download button to access the ACSL-6300-50TE schematic symbol, PCB footprint, and 3D model.
