ACT8865QI305-T footprint, schematic symbol and 3D model by Qorvo

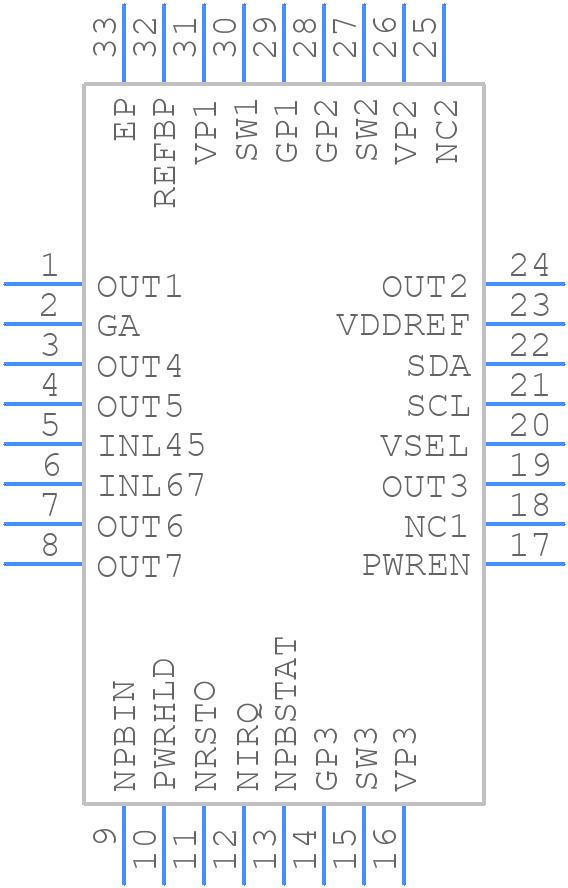

Symbol

click to zoom

PCB Footprints

ACT8865QI305-T - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ACT8865QI305-T

click to zoom

3D Models

ACT8865QI305-T - Qorvo - 3D model - Quad Flat No-Lead - ACT8865QI305-T

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ACT8865QI305-T
Part Number ACT8865QI305-T
Manufacturer Qorvo
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - ACT8865QI305-T
Released Date Oct 23, 2019
Last Modified Date Feb 19, 2025 12:06 PM UTC
Pinout / Pin List Click Here (Member Only)

ACT8865QI305-T Details

Manufacturer Part Number:
ACT8865QI305-T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
TQFN-32
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
20 Weeks
Date Of Intro:
2019-09-09
Manufacturer:
Qorvo
YTEOL:
6
Adjustable Threshold:
YES
Analog IC - Other Type:
POWER SUPPLY SUPPORT CIRCUIT
JESD-30 Code:
S-XQCC-N32
Length:
4 mm
Number of Channels:
7
Number of Functions:
1
Number of Terminals:
32
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC32,.16SQ,16
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Seated Height-Max:
0.8 mm
Supply Current-Max (Isup):
7 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.5 V
Supply Voltage-Nom (Vsup):
3.6 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Threshold Voltage-Nom:
+2.45V
Width:
4 mm

ACT8865QI305-T Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power lines.
To ensure stability, use a minimum output capacitance of 10uF, and ensure that the output capacitor has a low ESR (Equivalent Series Resistance). Also, avoid using ceramic capacitors with high ESL (Equivalent Series Inductance).
The maximum input voltage that the ACT8865QI305-T can handle is 5.5V. Exceeding this voltage may damage the IC.
The ACT8865QI305-T has a resistive divider network that sets the output voltage. To program the output voltage, calculate the required resistor values using the formula provided in the datasheet, and then use a resistor network with 1% tolerance or better.
The thermal derating curve for the ACT8865QI305-T is not explicitly provided in the datasheet. However, as a general guideline, the device's power dissipation should be derated by 1.5% per degree Celsius above 25°C.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ACT8865QI305-T Overview

Use the download button to access the ACT8865QI305-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ACT88, or try a keyword search, such as Power Management Circuits

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
