ACT8865QI405-T footprint, schematic symbol and 3D model by Qorvo

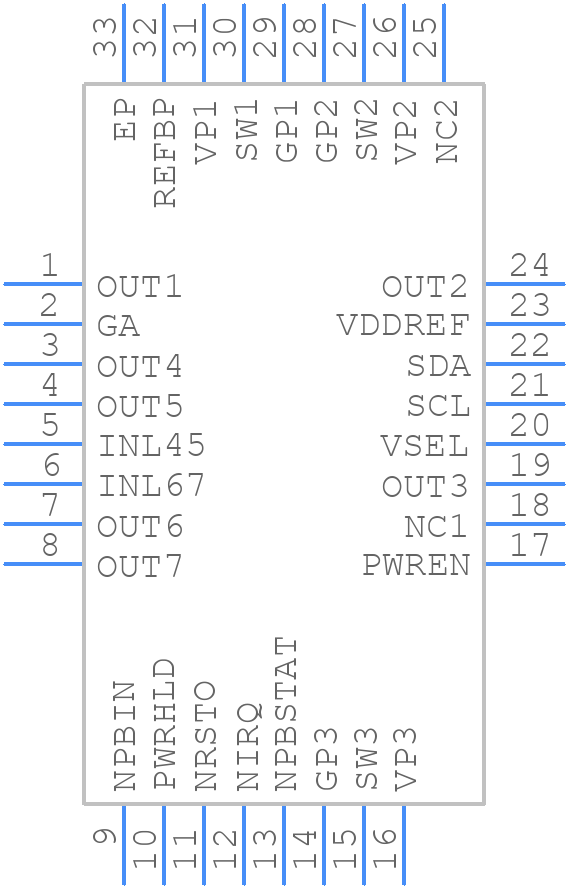

Symbol

click to zoom

PCB Footprints

ACT8865QI405-T - Qorvo PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ACT8865QI305-T

click to zoom

3D Models

ACT8865QI405-T - Qorvo - 3D model - Quad Flat No-Lead - ACT8865QI305-T

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ACT8865QI405-T
Part Number ACT8865QI405-T
Manufacturer Qorvo
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - ACT8865QI305-T
Released Date May 27, 2020
Last Modified Date Feb 19, 2025 12:06 PM UTC
Pinout / Pin List Click Here (Member Only)

ACT8865QI405-T Details

Manufacturer Part Number:
ACT8865QI405-T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
TQFN-32
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
20 Weeks
Date Of Intro:
2019-09-09
Manufacturer:
Qorvo
YTEOL:
6
Adjustable Threshold:
YES
Analog IC - Other Type:
POWER SUPPLY SUPPORT CIRCUIT
JESD-30 Code:
S-XQCC-N32
Length:
4 mm
Number of Channels:
7
Number of Functions:
1
Number of Terminals:
32
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC32,.16SQ,16
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Seated Height-Max:
0.8 mm
Supply Current-Max (Isup):
7 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.5 V
Supply Voltage-Nom (Vsup):
3.6 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Threshold Voltage-Nom:
+2.45V
Width:
4 mm

ACT8865QI405-T Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power lines.
Ensure that the output capacitor is properly sized and placed close to the IC. Also, make sure the input voltage is within the recommended range, and the input capacitor is properly sized and placed.
The maximum ambient temperature for the ACT8865QI405-T is 85°C. However, it's recommended to derate the device for temperatures above 70°C to ensure reliable operation.
Yes, the ACT8865QI405-T is designed to withstand high-vibration environments. However, it's recommended to follow proper PCB mounting and soldering techniques to ensure the device is securely attached to the PCB.
Use an oscilloscope to check the input and output waveforms, and verify that the input voltage is within the recommended range. Also, check for proper PCB layout, component placement, and soldering quality.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ACT8865QI405-T Overview

Use the download button to access the ACT8865QI405-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ACT88, or try a keyword search, such as Power Management Circuits

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
