AD1815JS - Rochester Electronics

AD1815JS Details

• Manufacturer Part Number:

  AD1815JS

• Pbfree Code:

  No

• Rohs Code:

  No

• Part Life Cycle Code:

  Active

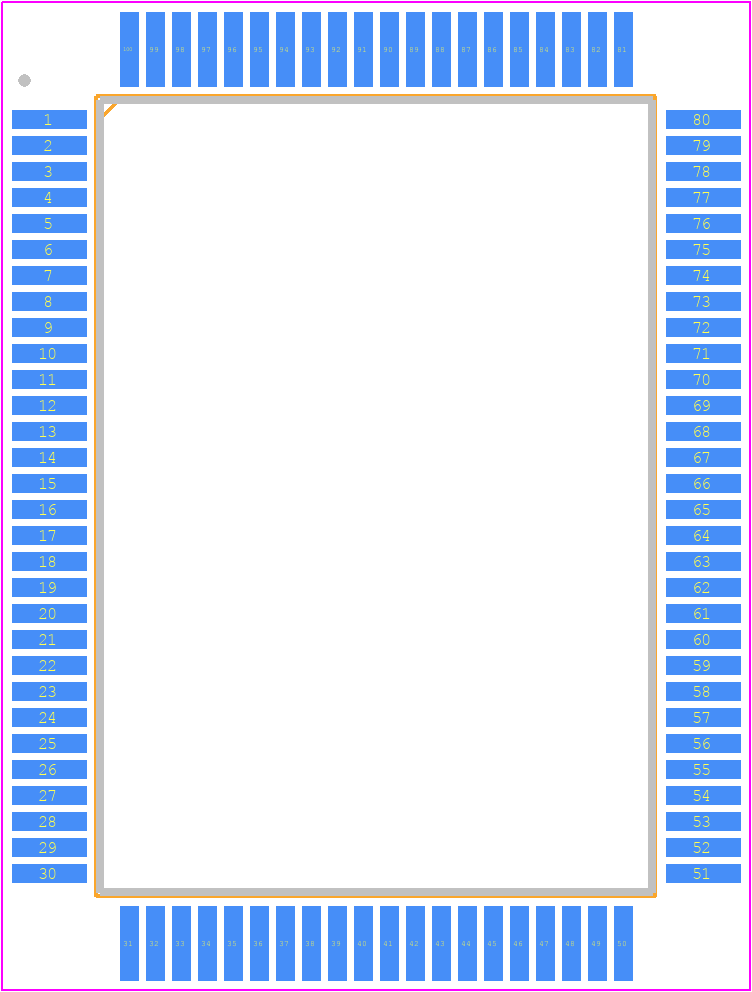

• Part Package Code:

  QFP

• Package Description:

  PLASTIC, QFP-100

• Pin Count:

  100

• Reach Compliance Code:

  Unknown

• Manufacturer:

  Rochester Electronics LLC

• Consumer IC Type:

  CONSUMER CIRCUIT

• JESD-30 Code:

  R-PQFP-G100

• JESD-609 Code:

  e0

• Length:

  20 mm

• Moisture Sensitivity Level:

  NOT SPECIFIED

• Number of Functions:

  1

• Number of Terminals:

  100

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Shape:

  RECTANGULAR

• Package Style:

  FLATPACK

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  COMMERCIAL

• Seated Height-Max:

  2.45 mm

• Supply Voltage-Max (Vsup):

  5.25 V

• Supply Voltage-Min (Vsup):

  4.75 V

• Surface Mount:

  YES

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  14 mm
