AD1835AASZ-REEL - Analog Devices

Description: Interface - CODECs High perf 2:8 Audio Codec IC

Download AD1835AASZ-REEL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD1835AASZ-REEL - Analog Devices - PCB symbol
click to zoom
PCB Footprints

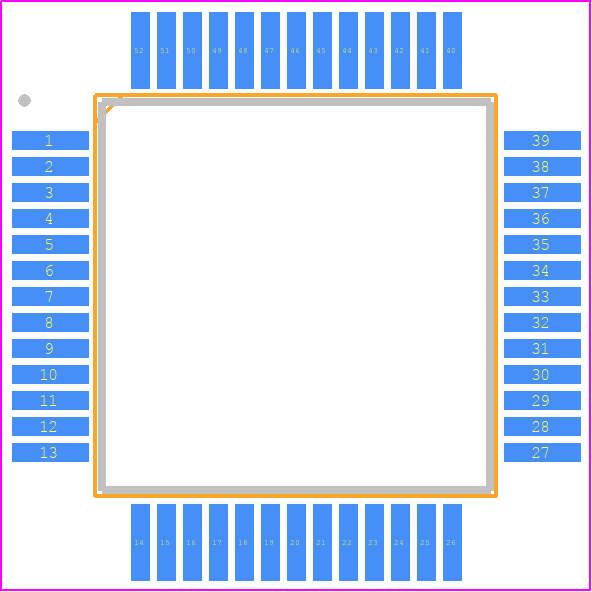

AD1835AASZ-REEL - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - (S-52-1)
click to zoom
3D Models
AD1835AASZ-REEL - Analog Devices - 3D model - Quad Flat Packages - (S-52-1)
click to zoom

AD1835AASZ-REEL Details

  • Manufacturer Part Number:

    AD1835AASZ-REEL

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFP

  • Package Description:

    LEAD FREE, PLASTIC, MS-022AC, MQFP-52

  • Pin Count:

    52

  • Manufacturer Package Code:

    S-52-1

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G52

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    52

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP52,.52SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.45 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

AD1835AASZ-REEL Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the AD1835AASZ-REEL evaluation board documentation, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The AD1835AASZ-REEL is a highly configurable device, and configuration depends on the specific audio application. Analog Devices provides application notes and software tools, such as the SigmaStudio graphical development environment, to help engineers configure the device for their specific use case.
  • The maximum power consumption of the AD1835AASZ-REEL depends on the specific operating conditions, such as the clock frequency, voltage supply, and audio signal levels. According to the datasheet, the typical power consumption is around 130mW, but this can vary depending on the application.
  • To ensure EMC with the AD1835AASZ-REEL, engineers should follow proper PCB design and layout practices, such as using shielding, filtering, and grounding techniques to minimize electromagnetic interference (EMI). Additionally, Analog Devices provides guidelines for EMC compliance in the device's datasheet and application notes.
  • The AD1835AASZ-REEL has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. Engineers should also ensure good airflow around the device and consider using thermal interface materials or heat sinks if necessary.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD1835AASZ-REEL Overview

Use the download button to access the AD1835AASZ-REEL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD183, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
