AD1835AASZ - Analog Devices

Description: AD1835AASZ, Audio Codec 2 (ADC), 8 (DAC)-channel 24bit- 96ksps Serial-I2S 52-Pin MQFP

Download AD1835AASZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD1835AASZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

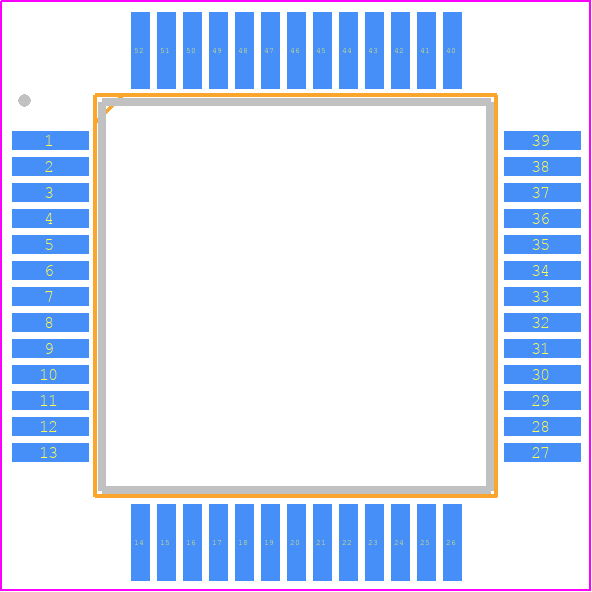

AD1835AASZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - S-52-1---1
click to zoom
3D Models
AD1835AASZ - Analog Devices - 3D model - Quad Flat Packages - S-52-1---1
click to zoom

AD1835AASZ Details

  • Manufacturer Part Number:

    AD1835AASZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFP

  • Package Description:

    LEAD FREE, PLASTIC, MS-022AC, MQFP-52

  • Pin Count:

    52

  • Manufacturer Package Code:

    S-52-1

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G52

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    52

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP52,.52SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.45 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

AD1835AASZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This ensures proper initialization of the device.
  • To optimize performance in a noisy environment, use a low-pass filter on the analog input, ensure good power supply decoupling, and use a clock signal with low jitter. Additionally, consider using a shielded enclosure and keeping the analog and digital grounds separate.
  • The maximum clock frequency that can be used with the AD1835AASZ is 50 MHz. However, the actual clock frequency used may be limited by the specific application and system requirements.
  • To configure the AD1835AASZ for differential analog input, connect the positive analog input to the IN+ pin and the negative analog input to the IN- pin. Ensure that the common-mode voltage is within the specified range and that the differential input voltage is within the specified range.
  • The recommended layout and routing for the AD1835AASZ involves keeping the analog and digital signals separate, using a solid ground plane, and minimizing the length of the analog input traces. Additionally, use a low-impedance power supply and decoupling capacitors to minimize noise and ensure proper operation.
