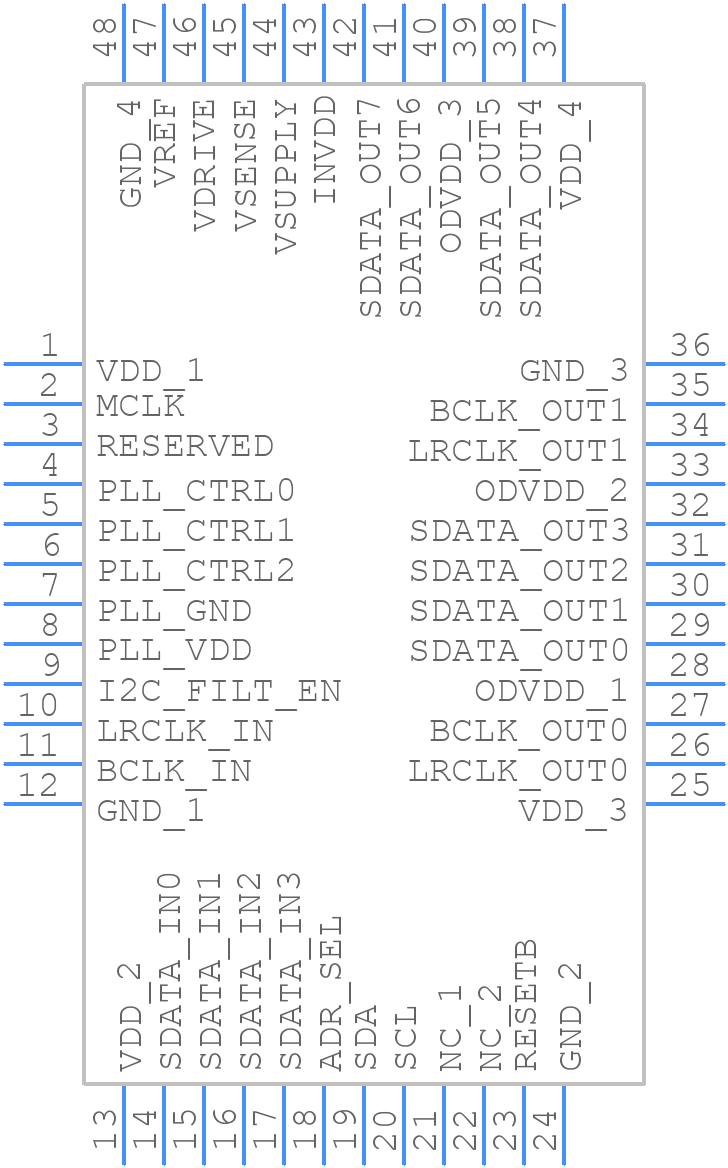

AD1941YSTZ - Analog Devices

AD1941YSTZ Frequently Asked Questions (FAQs)

• What is the recommended power-up sequence for the AD1941YSTZ?
  The recommended power-up sequence is to apply VDD first, followed by VCC, and then the clock signal. This ensures proper initialization and prevents damage to the device.
• How do I optimize the AD1941YSTZ for low power consumption?
  To optimize for low power consumption, use the power-down mode (PD pin), reduce the clock frequency, and minimize the number of active channels. Additionally, consider using the auto-power-down feature, which automatically powers down the device when not in use.
• What is the maximum clock frequency supported by the AD1941YSTZ?
  The AD1941YSTZ supports clock frequencies up to 50 MHz. However, the maximum clock frequency may vary depending on the specific application and system requirements.
• How do I handle clock jitter and skew in the AD1941YSTZ?
  To minimize clock jitter and skew, use a high-quality clock source, ensure proper PCB layout and routing, and consider using a clock buffer or jitter attenuator. Additionally, the AD1941YSTZ has a built-in clock jitter attenuator that can be enabled to reduce jitter.
• What is the recommended layout and routing for the AD1941YSTZ?
  For optimal performance, follow a star-connection layout for the analog and digital signals, keep the analog and digital grounds separate, and use a solid ground plane. Additionally, ensure that the clock signal is routed away from sensitive analog signals.
