AD1974YSTZ - Analog Devices

Description: AD1974YSTZ, 24 bit ADC 4-channel Differential, Serial, 48-Pin LQFP

Download AD1974YSTZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

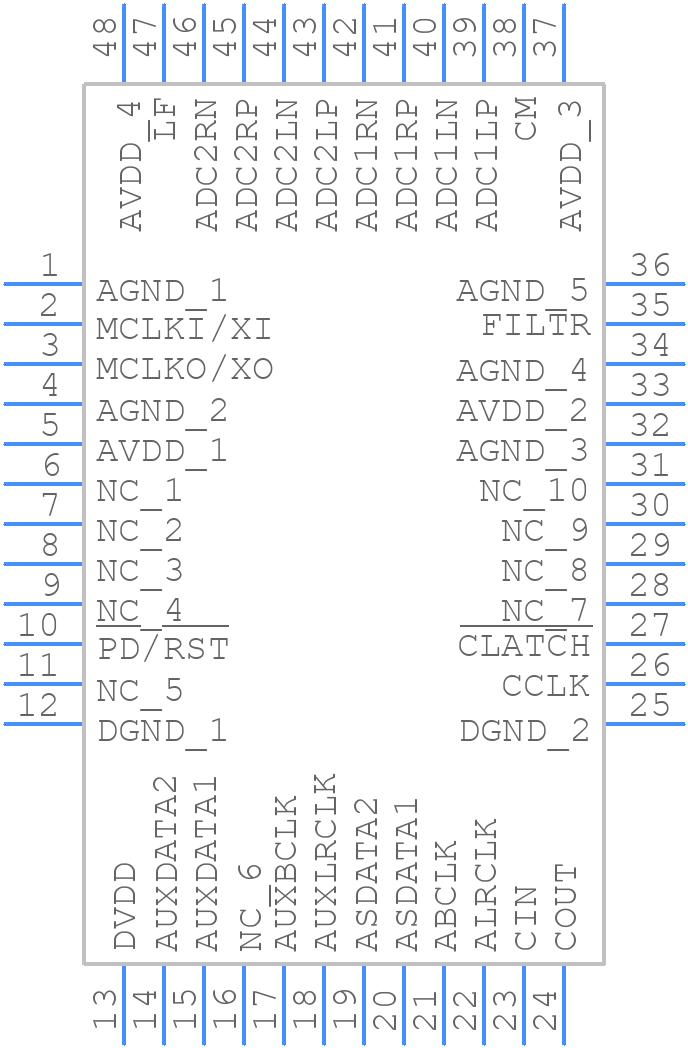

AD1974YSTZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD1974YSTZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - (ST-48)
click to zoom
3D Models
AD1974YSTZ - Analog Devices - 3D model - Quad Flat Packages - (ST-48)
click to zoom

AD1974YSTZ Details

  • Manufacturer Part Number:

    AD1974YSTZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    ROHS COMPLIANT, MS-026BBC, LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    ST-48

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    0.8 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    4

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.192 MHz

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

AD1974YSTZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by AVDD, and then DVDD. This ensures proper device operation and prevents latch-up.
  • Optimize ADC performance by selecting the appropriate ADC clock frequency, adjusting the input range and gain, and using the built-in calibration features. Additionally, consider using the AD1974YSTZ's built-in digital filtering and decimation options to improve signal-to-noise ratio and reduce noise.
  • The maximum input voltage range for the analog inputs is ±VREF, where VREF is the reference voltage, which can be set internally or externally. Ensure that the input signal does not exceed this range to prevent damage to the device.
  • The AD1974YSTZ can be interfaced with a microcontroller or DSP using a serial peripheral interface (SPI) or inter-integrated circuit (I2C) bus. Ensure that the interface clock frequency and data format are compatible with the AD1974YSTZ's specifications.
  • The AD1974YSTZ has a maximum junction temperature of 150°C. Ensure proper thermal management by providing adequate heat sinking, using a thermally conductive package, and minimizing power consumption to prevent overheating.
