Part Image

AD4004BRMZ-RL7 - Analog Devices

Description: 16-Bit, 2 MSPS/1 MSPS/500 kSPS, Precision, Pseudo Differential, SAR ADCs

Download AD4004BRMZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

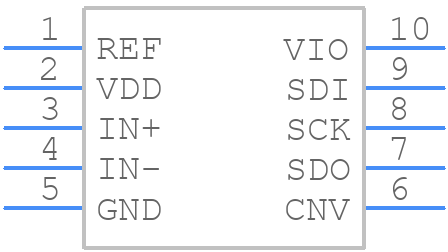

Symbol
AD4004BRMZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD4004BRMZ-RL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP]_10-1
click to zoom
3D Models
AD4004BRMZ-RL7 - Analog Devices - 3D model - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP]_10-1
click to zoom

AD4004BRMZ-RL7 Details

  • Manufacturer Part Number:

    AD4004BRMZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.1 V

  • Conversion Time-Max:

    0.32 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD4004BRMZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD4004BRMZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. It's also recommended to use a 4-layer PCB with a dedicated power plane and to follow the layout guidelines provided in the datasheet.
  • To ensure accurate temperature measurement, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, the device should be operated within its specified temperature range, and the temperature sensor should be placed close to the device being measured.
  • The maximum sampling rate of the AD4004BRMZ-RL7 is 1 MSPS. The power consumption of the device increases with the sampling rate, so it's essential to balance the sampling rate with power consumption requirements. The device's power consumption can be reduced by using the power-down mode or by reducing the sampling rate.
  • The AD4004BRMZ-RL7 can be interfaced with a microcontroller or FPGA using the SPI interface. The device requires a 3-wire SPI interface, and the microcontroller or FPGA should be configured to operate in SPI mode. The datasheet provides detailed information on the SPI interface timing and protocol.
  • The input voltage range of the AD4004BRMZ-RL7 affects its accuracy. The device is optimized for input voltages between 0 V and 5 V, and the accuracy degrades outside this range. It's essential to ensure that the input voltage is within the specified range to maintain the device's accuracy.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD4004BRMZ-RL7 Overview

Use the download button to access the AD4004BRMZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD400, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
