AD4004BRMZ - Analog Devices

Description: 16-Bit, 2 MSPS/1 MSPS/500 kSPS, Precision, Pseudo Differential, SAR ADCs

Download AD4004BRMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

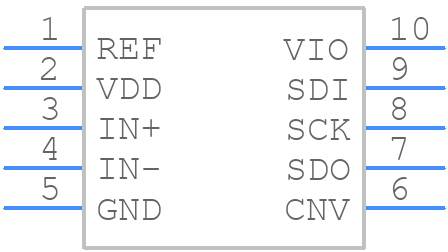

Symbol
AD4004BRMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD4004BRMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP_10
click to zoom
3D Models
AD4004BRMZ - Analog Devices - 3D model - Small Outline Packages - 10-Lead Mini Small Outline Package [MSOP_10
click to zoom

AD4004BRMZ Details

  • Manufacturer Part Number:

    AD4004BRMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    RM-10

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.1 V

  • Conversion Time-Max:

    0.32 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

AD4004BRMZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD4004BRMZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the analog signal traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-pass filter to reduce high-frequency noise.
  • To optimize the performance of the AD4004BRMZ in high-temperature environments, it's recommended to use a heat sink to dissipate heat, ensure good airflow around the device, and consider using a thermal interface material to improve heat transfer. Additionally, reducing the power supply voltage and minimizing the current consumption can help reduce the device's temperature.
  • The recommended power-up sequence for the AD4004BRMZ is to first apply the analog power supply (AVDD) and then the digital power supply (DVDD). The digital power supply should be powered up after the analog power supply has reached its nominal voltage. This sequence helps prevent latch-up or damage to the device.
  • To troubleshoot issues with the AD4004BRMZ, start by verifying the power supply voltages and ensuring that the device is properly configured. Check the input signals and ensure they are within the specified range. Use an oscilloscope to verify the clock signal and analog input signals. If the issue persists, consult the datasheet and application notes for guidance on troubleshooting and debugging.
  • The recommended method for calibrating the AD4004BRMZ involves using the device's built-in calibration registers to adjust the offset and gain of the ADC. The calibration process typically involves applying a known input voltage and adjusting the calibration registers to achieve the desired accuracy. Consult the datasheet and application notes for specific calibration procedures and guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD4004BRMZ Overview

Use the download button to access the AD4004BRMZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD400, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
