AD4022BCPZ-RL7 - Analog Devices

Description: 1-Channel Single ADC SAR 500ksps 20-bit Serial Medical 10-Pin LFCSP EP T/R

Download AD4022BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

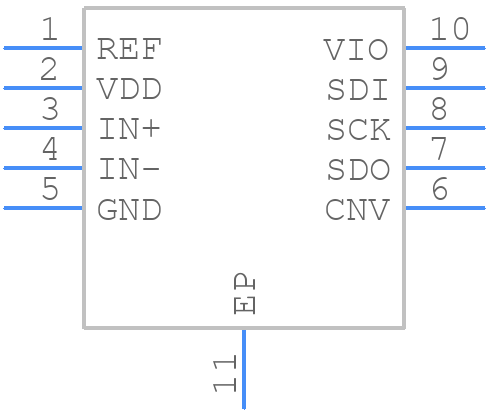

Symbol
AD4022BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD4022BCPZ-RL7 - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-Lead Lead Frame Chip Scale Package [LFCSP]
click to zoom
3D Models
AD4022BCPZ-RL7 - Analog Devices - 3D model - Small Outline No-lead - 10-Lead Lead Frame Chip Scale Package [LFCSP]
click to zoom

AD4022BCPZ-RL7 Details

  • Manufacturer Part Number:

    AD4022BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    CP-10-9

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-11-20

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    5.1 V

  • Analog Input Voltage-Min:

    -2.4 V

  • Conversion Time-Max:

    0.35 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.00031%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    20

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

AD4022BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD4022BCPZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. It's also recommended to use a low-ESR capacitor for the VDD pin and to keep the input traces as short as possible.
  • To ensure the accuracy of the AD4022BCPZ-RL7's analog-to-digital conversion, it's essential to follow proper layout and routing guidelines, use a clean and stable power supply, and minimize noise and interference on the input signals. Additionally, calibration and trimming of the device may be necessary to achieve optimal performance.
  • The maximum sampling rate of the AD4022BCPZ-RL7 is 1.8 MSPS. As the sampling rate increases, the power consumption of the device also increases. However, the power consumption can be reduced by using the device's power-down mode or by reducing the clock frequency.
  • The AD4022BCPZ-RL7 has built-in overvoltage and undervoltage protection. If the input voltage exceeds the recommended range, the device will enter a high-impedance state to prevent damage. Additionally, the device has a brownout detection feature that resets the device in case of an undervoltage condition.
  • The recommended operating temperature range for the AD4022BCPZ-RL7 is -40°C to 125°C. Operating the device outside this range can affect its performance, including accuracy, linearity, and power consumption. It's essential to ensure that the device is operated within the recommended temperature range to achieve optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD4022BCPZ-RL7 Overview

Use the download button to access the AD4022BCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD402, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
