AD4080BBCZ - Analog Devices

Description: High performance ► Throughput: 40 MSPS, 46.25 ns conversion latency ► INL: ±4 ppm (typical), ±8 ppm (maximum) ► SNR/THD ► 93.6 dB (typical)/−110 dB (typical) at fIN = 1 kHz ► 93.5 dB (typical)/−104 dB (typical) at fIN = 1 MHz ► Noise spectral density: −167.6 dBFS/Hz ► 20-bit resolution, no missing codes ► Low power ► 79.3 mW typical at 40 MSPS with −0.5 dBFS sine-wave input ► Easy Drive, fully differential Input ► 6 V p-p differential input range ► Continuous signal acquisition

Download AD4080BBCZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

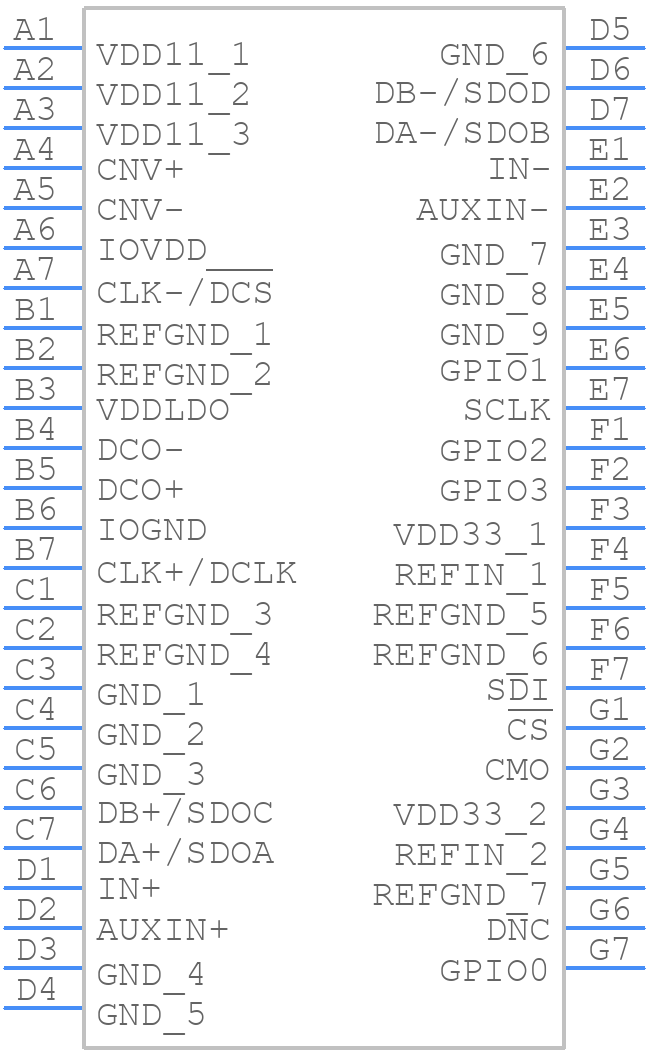

Symbol
AD4080BBCZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD4080BBCZ - Analog Devices PCB footprint - BGA - BGA - BC-49-8
click to zoom
3D Models
AD4080BBCZ - Analog Devices - 3D model - BGA - BC-49-8
click to zoom

AD4080BBCZ Details

  • Manufacturer Part Number:

    AD4080BBCZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    3A991.c.4

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    3.005 V

  • Analog Input Voltage-Min:

    -2.995 V

  • Conversion Time-Max:

    0.8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XBGA-B49

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0008%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    20

  • Number of Functions:

    1

  • Number of Terminals:

    49

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA49,7X7,25

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Sample Rate:

    40 MHz

  • Seated Height-Max:

    1.38 mm

  • Supply Current-Max:

    35.5 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    BOTTOM

  • Width:

    5 mm

AD4080BBCZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD4080BBCZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • The AD4080BBCZ has an internal calibration circuit that is enabled by default. However, if you need to recalibrate the device, you can do so by applying a calibration signal to the CALIN pin. The calibration process is described in detail in the datasheet.
  • The maximum sampling rate of the AD4080BBCZ is 1 MSPS (million samples per second). However, this rate can be affected by the clock frequency, the input signal bandwidth, and the system noise. It's recommended to consult the datasheet and perform simulations to determine the optimal sampling rate for your specific application.
  • Yes, the AD4080BBCZ can be used in a multi-channel application. The device has a serial interface that allows multiple devices to be daisy-chained together. However, you'll need to ensure that each device has a unique address and that the clock and data lines are properly routed.
  • The AD4080BBCZ has a power-on reset (POR) circuit that ensures the device is in a known state after power-up. To handle the POR, you can add a reset circuit that holds the device in reset until the power supply has stabilized. The datasheet provides more information on the POR timing and requirements.
