AD4111BCPZ footprint, schematic symbol and 3D model by Analog Devices

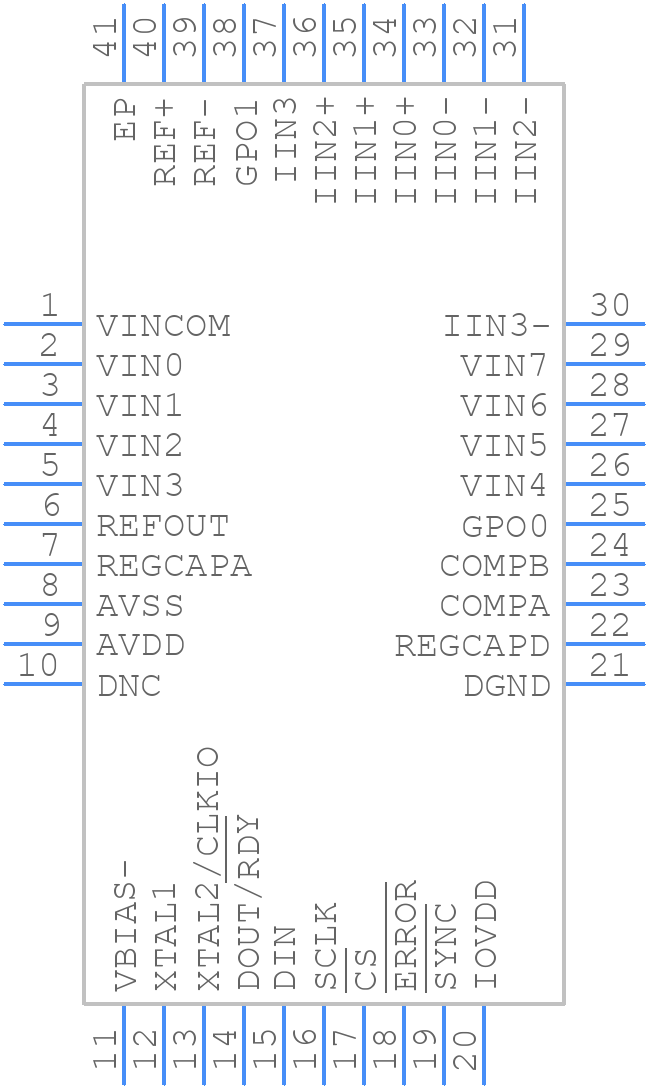

Symbol

click to zoom

PCB Footprints

AD4111BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - AD4111BCPZ+

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD4111BCPZ
Part Number AD4111BCPZ
Manufacturer Analog Devices
Pin Count 41
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - AD4111BCPZ+
Released Date Mar 13, 2019
Last Modified Date Nov 14, 2025 4:26 PM UTC
Pinout / Pin List Click Here (Member Only)

AD4111BCPZ Details

Manufacturer Part Number:
AD4111BCPZ
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
HVQCCN-40
Pin Count:
40
Manufacturer Package Code:
CP-40-15
Country Of Origin:
South Korea
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Date Of Intro:
2018-08-30
Manufacturer:
Analog Devices Inc
YTEOL:
9
Analog Input Voltage-Max:
10 V
Analog Input Voltage-Min:
-10 V
Converter Type:
ADC, DELTA-SIGMA
JESD-30 Code:
S-XQCC-N40
Length:
6 mm
Moisture Sensitivity Level:
3
Number of Analog In Channels:
16
Number of Bits:
24
Number of Functions:
1
Number of Terminals:
40
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Output Bit Code:
BINARY, OFFSET BINARY
Output Format:
SERIAL
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC40,.24SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Seated Height-Max:
1 mm
Supply Current-Max:
3.7 mA
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
6 mm

AD4111BCPZ Frequently Asked Questions (FAQs)

A good layout and routing practice for the AD4111BCPZ involves separating analog and digital grounds, using a solid ground plane, and keeping sensitive analog signals away from digital signals. Additionally, using a 4-layer PCB with a dedicated analog ground plane and a dedicated digital ground plane can help minimize noise and ensure optimal performance.
To optimize the AD4111BCPZ's ADC performance, consider the following: choose the right ADC mode (e.g., single-shot or continuous conversion) for your application; optimize the ADC clock frequency and sampling rate; use the correct input range and gain settings; and implement proper filtering and signal conditioning for the input signal.
Key considerations for powering the AD4111BCPZ include using a low-noise, low-dropout regulator (LDO) or a switching regulator with a low output voltage ripple; decoupling the power supply lines with capacitors; and ensuring a stable power supply voltage within the recommended operating range (2.7 V to 5.5 V).
To interface the AD4111BCPZ with a microcontroller or DSP, use a compatible communication protocol (e.g., SPI or I2C); ensure proper signal level translation (e.g., using level translators or buffers); and consider using a dedicated interface IC or a FPGA/CPLD for more complex interfaces.
Thermal management considerations for the AD4111BCPZ include using a heat sink or thermal pad; ensuring good airflow around the device; and avoiding high-power dissipation or high-temperature operating conditions. Monitor the device's junction temperature (TJ) and ensure it remains within the recommended operating range (−40°C to +125°C).

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

AD4111BCPZ Overview

Use the download button to access the AD4111BCPZ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like AD411, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
