AD4112BCPZ-RL7 - Analog Devices

Description: 24 Bit Analog to Digital Converter 4, 8 Input 1 Sigma-Delta 40-LFCSP-VQ (6x6) , 2V ~ 5.5V , -40°C ~ 105°C

Download AD4112BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

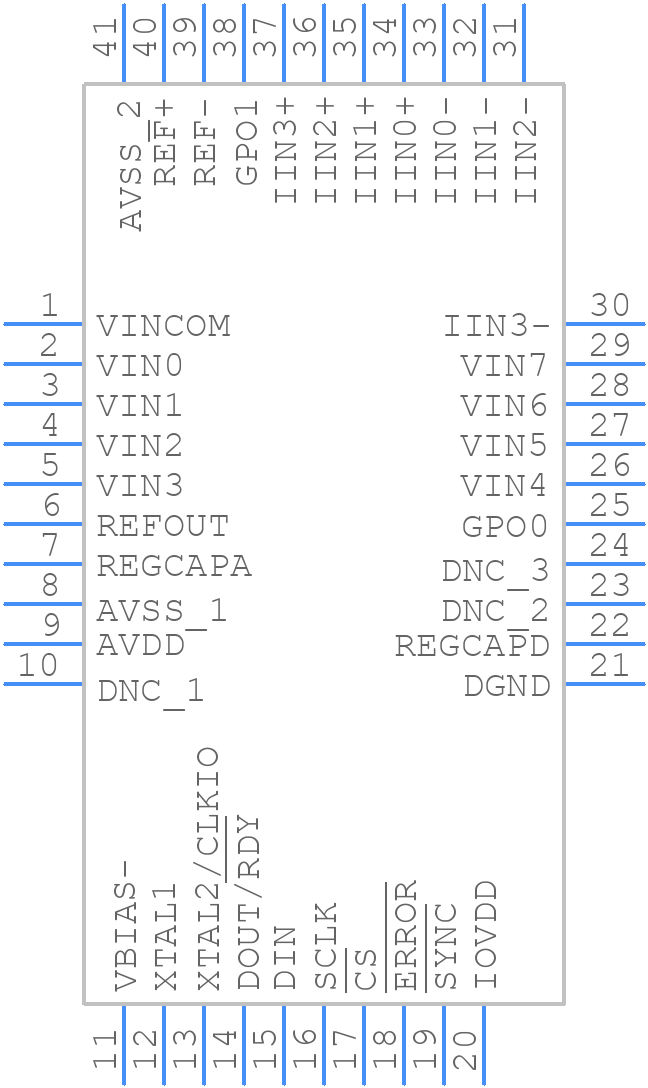

AD4112BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD4112BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-15
click to zoom
3D Models
AD4112BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-15
click to zoom

AD4112BCPZ-RL7 Details

  • Manufacturer Part Number:

    AD4112BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-15

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-08-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    16

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    3.7 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

AD4112BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD4112 involves keeping analog and digital signals separate, using a solid ground plane, and minimizing noise coupling. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure accurate temperature measurement, calibrate the AD4112 using a thermocouple simulator or a precision temperature source. Also, ensure good thermal contact between the thermocouple and the AD4112, and minimize thermal gradients.
  • The maximum cable length for the AD4112's thermocouple input depends on the type of thermocouple and the noise environment. As a general rule, keep the cable length as short as possible (less than 10 feet) to minimize noise pickup and ensure accurate measurements.
  • Yes, the AD4112 can be used with non-standard thermocouple types, but it may require custom calibration and linearization. Consult the datasheet and application notes for guidance on using non-standard thermocouples.
  • To minimize EMI, use a shielded cable for the thermocouple input, keep the AD4112 away from high-frequency sources, and use a low-pass filter on the analog output. Also, ensure good grounding and shielding of the PCB.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD4112BCPZ-RL7 Overview

Use the download button to access the AD4112BCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
