AD4112BCPZ - Analog Devices

Description: Analog to Digital Converters - ADC ADC with Precision Resistor Network

Download AD4112BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

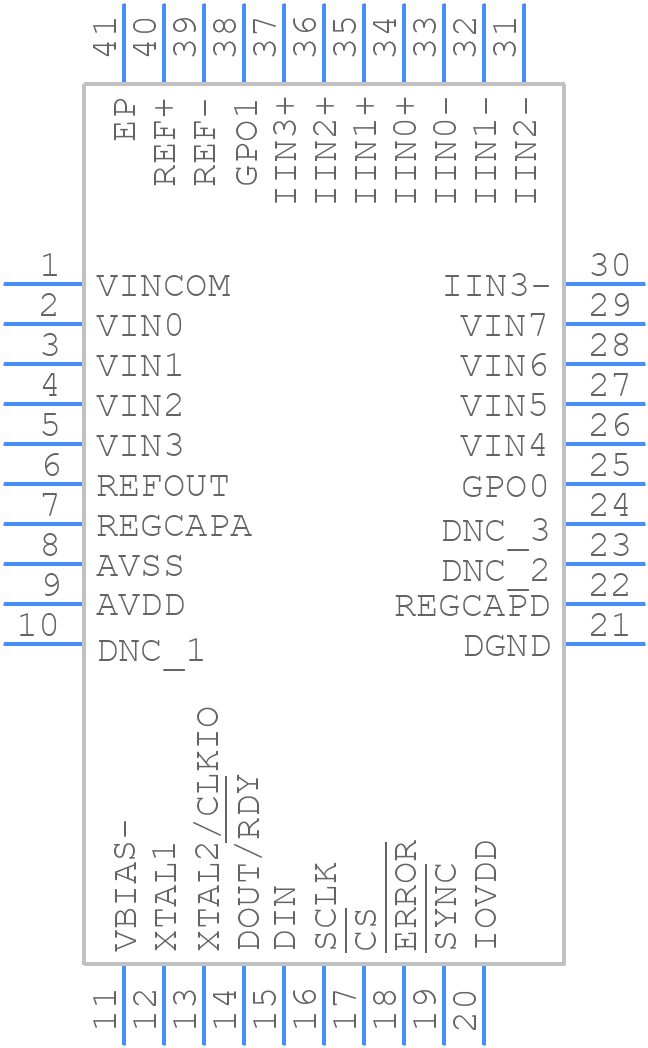

AD4112BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD4112BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-LFCSP_WQ+
click to zoom
3D Models
AD4112BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - 40-LFCSP_WQ+
click to zoom

AD4112BCPZ Details

  • Manufacturer Part Number:

    AD4112BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-15

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-08-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    10 V

  • Analog Input Voltage-Min:

    -10 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-XQCC-N40

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    16

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    3.7 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

AD4112BCPZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD4112BCPZ involves separating analog and digital grounds, using a solid ground plane, and keeping sensitive analog signals away from digital signals. Additionally, using a 4-layer PCB with a dedicated analog ground plane and a dedicated digital ground plane can help minimize noise and ensure optimal performance.
  • To properly calibrate the AD4112BCPZ, follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the offset and gain registers to achieve the desired accuracy. It's also important to ensure that the device is operated within its specified temperature range and that the input signals are within the specified range.
  • The AD4112BCPZ is specified to operate from -40°C to 125°C, but its performance may degrade at higher temperatures. At high temperatures, the device's offset voltage and gain error may increase, affecting its accuracy. It's essential to consider the temperature range of the application and ensure that the device is properly heat-sinked to maintain optimal performance.
  • The AD4112BCPZ can be interfaced with a microcontroller or FPGA using a serial peripheral interface (SPI) or inter-integrated circuit (I2C) interface. The device's digital interface is compatible with 1.8 V, 2.5 V, or 3.3 V logic levels, making it easy to interface with a wide range of microcontrollers or FPGAs.
  • The AD4112BCPZ is a sensitive analog device that can be susceptible to electromagnetic interference (EMI) and radio-frequency interference (RFI). To minimize the impact of EMI and RFI, use proper shielding, grounding, and filtering techniques, such as using a metal shield around the device, connecting the analog ground to the digital ground, and using EMI filters on the input signals.
