AD4695BCBZ-RL7 - Analog Devices

Description: 16-Bit, 16-Channel, 500 kSPS, Easy Drive Multiplexed SAR ADC

Download AD4695BCBZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

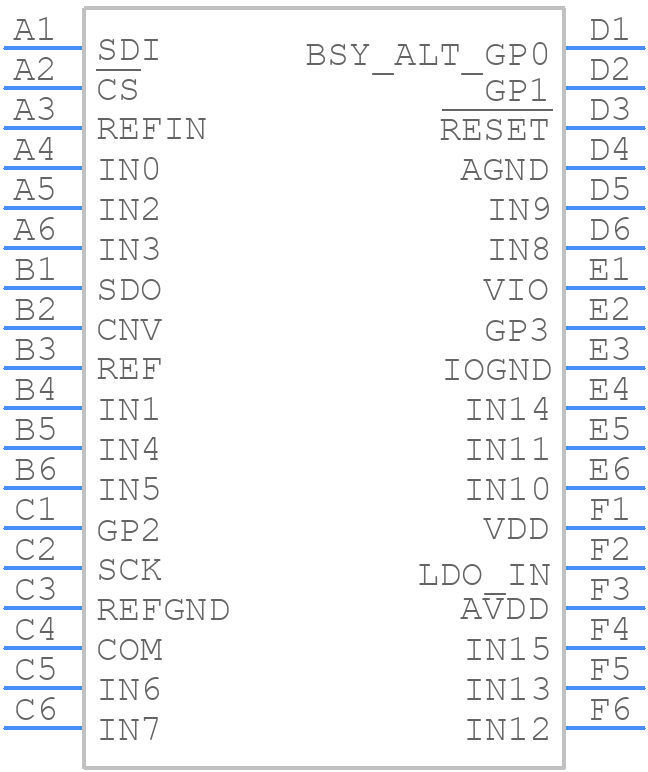

AD4695BCBZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD4695BCBZ-RL7 - Analog Devices PCB footprint - BGA - BGA - 5 mm × 5 mm Body and 0.75 mm Package Height (CP-32-7)
click to zoom
3D Models
AD4695BCBZ-RL7 - Analog Devices - 3D model - BGA - 5 mm × 5 mm Body and 0.75 mm Package Height (CP-32-7)
click to zoom

AD4695BCBZ-RL7 Details

  • Manufacturer Part Number:

    AD4695BCBZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    CB-36-5

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    5.75 V

  • Conversion Time-Max:

    0.415 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PBGA-B36

  • Length:

    2.96 mm

  • Linearity Error-Max (EL):

    0.003814697%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    16

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA36,6X6,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Sample Rate:

    0.5 MHz

  • Seated Height-Max:

    0.56 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2.96 mm

AD4695BCBZ-RL7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star-grounding configuration to minimize noise and ensure that the analog and digital signals are routed away from each other.
  • The internal voltage reference of the AD4695BCBZ-RL7 is sensitive to temperature and power supply voltage. Ensure that the device is operated within the recommended temperature range (−40°C to +125°C) and power supply voltage (2.7 V to 5.5 V). Also, avoid noise and voltage drops on the VREF pin.
  • The recommended clock frequency for the AD4695BCBZ-RL7 is between 1 MHz and 20 MHz. However, the optimal clock frequency depends on the specific application and the desired conversion rate. A higher clock frequency can provide faster conversion rates, but may also increase power consumption and noise.
  • The AD4695BCBZ-RL7 outputs 16-bit data in a serial format. The output data can be handled using a microcontroller or FPGA by configuring the serial interface to match the ADC's output format. Ensure that the microcontroller or FPGA can handle the ADC's output data rate and format.
  • The recommended power-up sequence for the AD4695BCBZ-RL7 is to apply the analog power supply (VCC) first, followed by the digital power supply (VDD). Ensure that the power supplies are stable and within the recommended voltage range before applying the clock signal.
