AD4695BCPZ-RL7 - Analog Devices

Description: 16-Bit, 16-Channel, 500 kSPS, Easy Drive Multiplexed SAR ADC

Download AD4695BCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

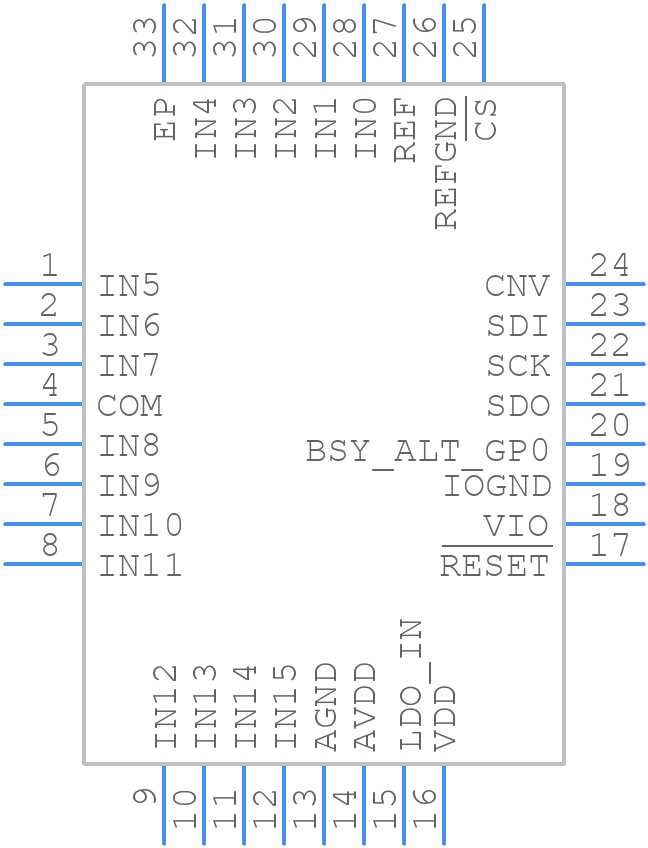

AD4695BCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD4695BCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32 LEAD 5mmX5mmxxx
click to zoom
3D Models
AD4695BCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - 32 LEAD 5mmX5mmxxx
click to zoom

AD4695BCPZ-RL7 Details

  • Manufacturer Part Number:

    AD4695BCPZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    2.875 V

  • Analog Input Voltage-Min:

    -1.2 V

  • Conversion Time-Max:

    0.415 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.001525%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    16

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Sample Rate:

    0.5 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

AD4695BCPZ-RL7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply connections and keep the signal traces short and direct.
  • The internal voltage reference can be affected by temperature and power supply voltage. To ensure accuracy, use a stable power supply, keep the device at a stable temperature, and use the internal reference buffer to reduce the load on the reference voltage.
  • The recommended clock frequency is between 1 MHz and 20 MHz. However, the optimal clock frequency depends on the specific application and the desired conversion rate. Consult the datasheet for more information.
  • The digital output data is in a 16-bit twos-complement format. The data is output in a serial format, with the most significant bit (MSB) first. The data can be processed using a microcontroller or an FPGA.
  • The power consumption of the AD4695BCPZ-RL7 depends on the operating mode and the clock frequency. In normal mode, the typical power consumption is around 35 mW at 3.3 V and 10 MHz clock frequency. In shutdown mode, the power consumption is around 1 μW.
