AD4695BCPZ - Analog Devices

Description: 16-Bit, 16-Channel, 500 kSPS, Easy Drive Multiplexed SAR ADC

Download AD4695BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

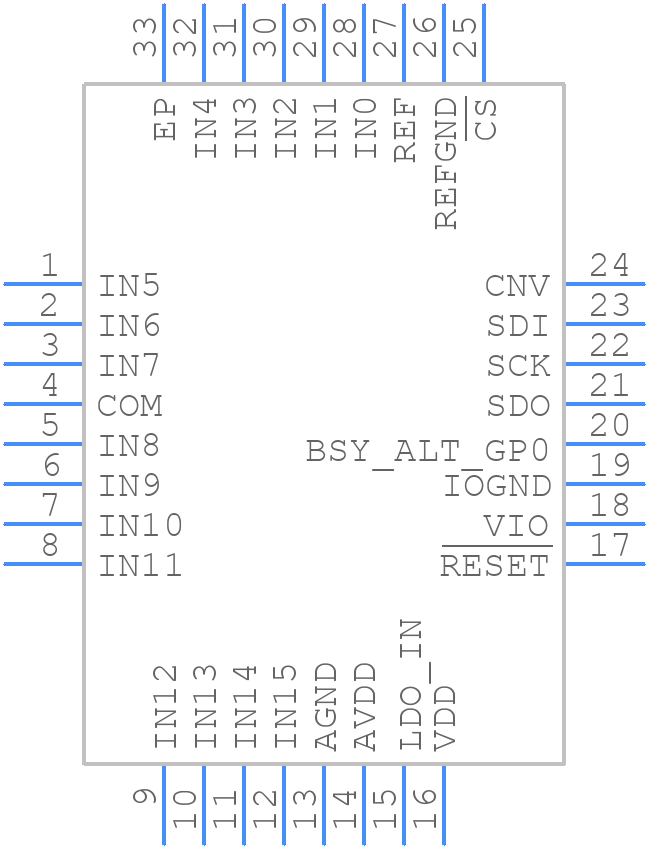

AD4695BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD4695BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP] 5 mm × 5 mm Body and 0.75 mm Package Height (CP-32-7)-*
click to zoom
3D Models
AD4695BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP] 5 mm × 5 mm Body and 0.75 mm Package Height (CP-32-7)-*
click to zoom

AD4695BCPZ Details

  • Manufacturer Part Number:

    AD4695BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    2.875 V

  • Analog Input Voltage-Min:

    -1.2 V

  • Conversion Time-Max:

    0.415 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.001525%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    16

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Sample Rate:

    0.5 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

AD4695BCPZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD4695BCPZ involves separating analog and digital signals, using a solid ground plane, and minimizing trace lengths and loops. It's also recommended to use a 4-layer PCB with a dedicated analog ground plane and to keep the analog and digital power supplies separate.
  • To optimize the AD4695BCPZ's performance, you should consider factors such as input signal range, gain, and bandwidth. You can also adjust the internal gain settings, filter cutoff frequencies, and output stage configurations to suit your specific application requirements.
  • The AD4695BCPZ has a maximum junction temperature of 150°C. To ensure reliable operation, you should provide adequate heat sinking, use a thermally conductive PCB material, and avoid overheating the device. You can also consider using thermal interface materials and heat sinks to improve heat dissipation.
  • To troubleshoot common issues with the AD4695BCPZ, start by checking the power supply voltages, input signals, and output voltages. Verify that the device is properly configured and that the input signals are within the specified range. You can also use oscilloscopes and signal analyzers to identify noise sources and oscillations.
  • To ensure electromagnetic compatibility, you should follow good PCB design practices, such as using shielding, filtering, and grounding techniques. You can also use EMI filters and shielding components to reduce electromagnetic interference and radiation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD4695BCPZ Overview

Use the download button to access the AD4695BCPZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD469, or try a keyword search, such as Analog to Digital Converters
