AD4697BCBZ-RL7 - Analog Devices

Description: 16-Bit, 8-Channel, 500 kSPS, Easy Drive Multiplexed SAR ADC

Download AD4697BCBZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

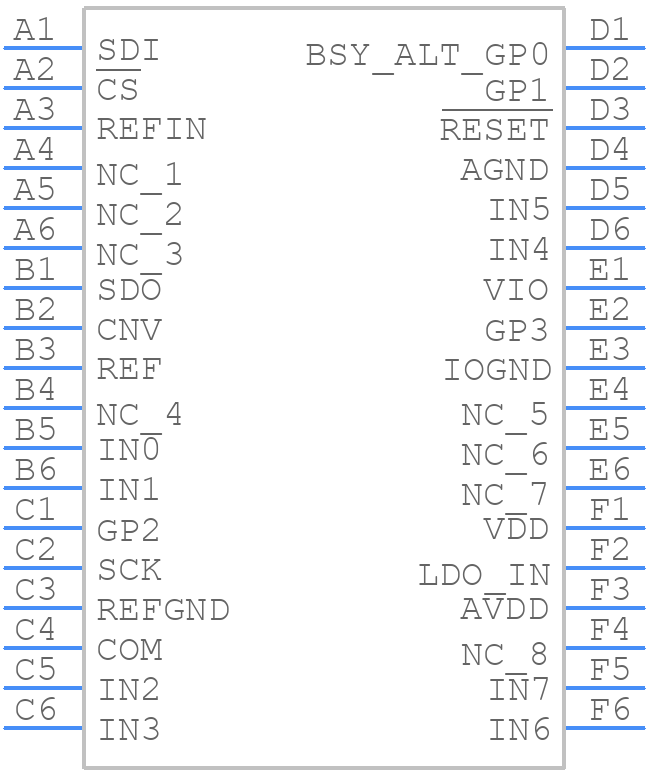

Symbol
AD4697BCBZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD4697BCBZ-RL7 - Analog Devices PCB footprint - BGA - BGA - 36-Ball Wafer Level Chip Scale Package [WLCSP] (CB-36-5)
click to zoom
3D Models
AD4697BCBZ-RL7 - Analog Devices - 3D model - BGA - 36-Ball Wafer Level Chip Scale Package [WLCSP] (CB-36-5)
click to zoom

AD4697BCBZ-RL7 Details

  • Manufacturer Part Number:

    AD4697BCBZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    CB-36

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    2.6 V

  • Analog Input Voltage-Min:

    -2.4 V

  • Conversion Time-Max:

    0.415 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PBGA-B36

  • Length:

    2.96 mm

  • Linearity Error-Max (EL):

    0.003815%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL, PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA36,6X6,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Sample Rate:

    0.5 MHz

  • Seated Height-Max:

    0.56 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2.96 mm

AD4697BCBZ-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD4697BCBZ-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. It's also recommended to use a 4-layer PCB with a dedicated power plane and to follow the layout guidelines provided in the AD4697 evaluation board documentation.
  • To ensure accurate calibration of the AD4697BCBZ-RL7, it's essential to follow the calibration procedure outlined in the datasheet. This includes using a high-accuracy voltage reference, ensuring the device is in a stable thermal environment, and using a low-noise power supply. Additionally, it's recommended to perform calibration at multiple temperatures to account for temperature drift.
  • The maximum allowed input voltage range for the AD4697BCBZ-RL7 is ±10.5 V, which is the absolute maximum rating. However, the recommended input voltage range for optimal performance is ±5 V. Exceeding the maximum rating can damage the device.
  • To handle EMI and RFI interference when using the AD4697BCBZ-RL7, it's recommended to use proper shielding, grounding, and filtering techniques. This includes using a metal shield around the device, connecting the shield to the analog ground, and using ferrite beads or common-mode chokes to filter out high-frequency noise.
  • The typical power consumption of the AD4697BCBZ-RL7 is around 35 mW at a supply voltage of 5 V. However, this can vary depending on the specific application, operating frequency, and output load. It's recommended to consult the datasheet and evaluate the power consumption in the specific use case.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD4697BCBZ-RL7 Overview

Use the download button to access the AD4697BCBZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD469, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
