AD4697BCPZ - Analog Devices

Description: 16-Bit, 8-Channel, 500 kSPS, Easy Drive Multiplexed SAR ADC

Download AD4697BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

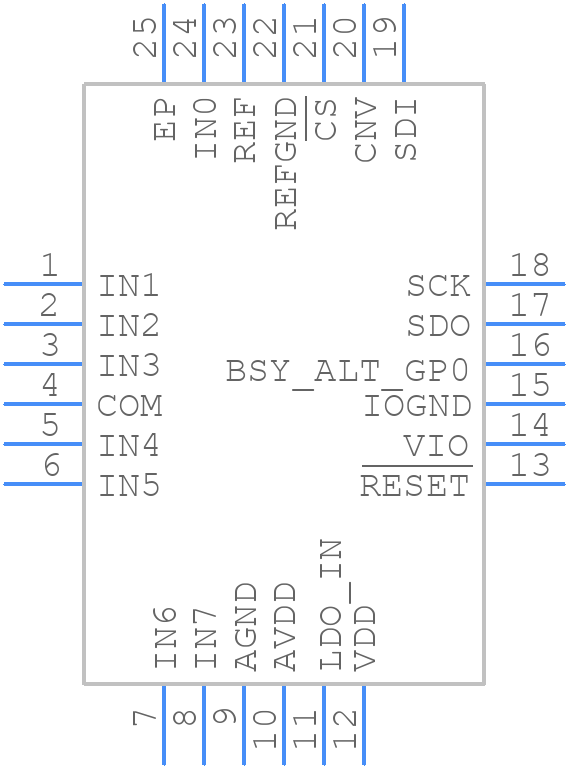

AD4697BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD4697BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-24-8)
click to zoom
3D Models
AD4697BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - (CP-24-8)
click to zoom

AD4697BCPZ Details

  • Manufacturer Part Number:

    AD4697BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-8

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    2.6 V

  • Analog Input Voltage-Min:

    -2.4 V

  • Conversion Time-Max:

    0.415 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.001525%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    8

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL, PARALLEL, WORD

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Sample Rate:

    0.5 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

AD4697BCPZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD4697BCPZ involves separating analog and digital signals, using a solid ground plane, and minimizing trace lengths and loops. It's also recommended to place the device close to the analog signal sources and to use a low-impedance power supply. Refer to the AD4697BCPZ evaluation board layout as a reference.
  • To optimize the AD4697BCPZ's performance, it's essential to understand the specific requirements of your application. This includes selecting the correct gain and bandwidth settings, optimizing the input signal conditioning, and ensuring proper power supply decoupling. Additionally, consider using the AD4697BCPZ's built-in features such as the programmable gain amplifier and the analog-to-digital converter to simplify your design.
  • Potential sources of error when using the AD4697BCPZ include noise, offset voltage, gain error, and nonlinearity. To mitigate these errors, it's essential to follow proper layout and routing practices, use a low-noise power supply, and implement proper input signal conditioning. Additionally, consider using the AD4697BCPZ's built-in features such as the offset correction and gain calibration to minimize errors.
  • The AD4697BCPZ can be interfaced with a microcontroller or FPGA using a serial peripheral interface (SPI) or an inter-integrated circuit (I2C) interface. The device's digital interface is compatible with most microcontrollers and FPGAs, and the communication protocol is straightforward. Refer to the AD4697BCPZ datasheet and the microcontroller or FPGA's documentation for specific interface details.
  • The AD4697BCPZ is a high-performance device that can dissipate a significant amount of power. To ensure reliable operation, it's essential to provide adequate thermal management. This includes using a heat sink, ensuring good airflow, and avoiding high ambient temperatures. Refer to the AD4697BCPZ datasheet for specific thermal management guidelines.
