AD4698BCBZ-RL7 - Analog Devices

Description: 16-Bit, 8-Channel, 1 MSPS, Easy Drive Multiplexed SAR ADC

Download AD4698BCBZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

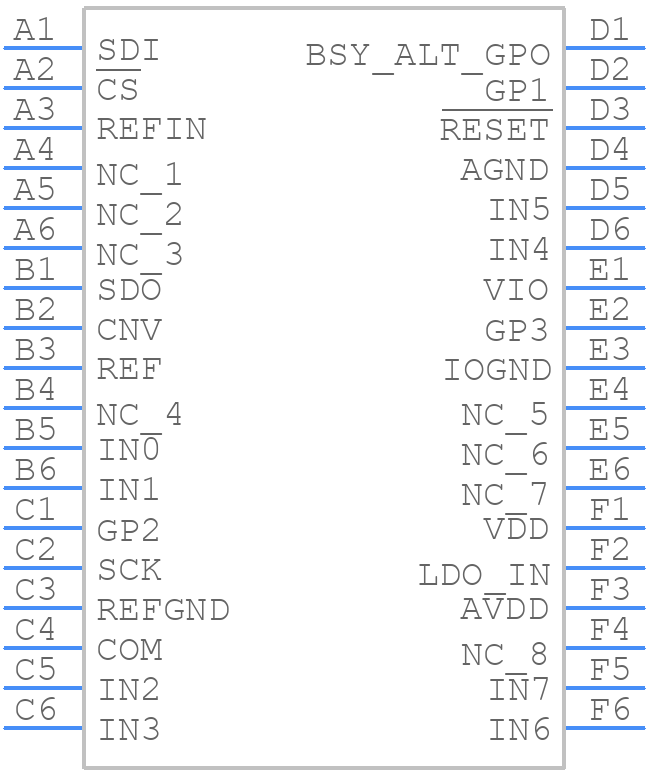

AD4698BCBZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD4698BCBZ-RL7 - Analog Devices PCB footprint - BGA - BGA - CB-36-5*
click to zoom
3D Models
AD4698BCBZ-RL7 - Analog Devices - 3D model - BGA - CB-36-5*
click to zoom

AD4698BCBZ-RL7 Details

  • Manufacturer Part Number:

    AD4698BCBZ-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WLCSP-36

  • Pin Count:

    36

  • Manufacturer Package Code:

    CB-36-5

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    2.6 V

  • Analog Input Voltage-Min:

    -2.4 V

  • Conversion Time-Max:

    0.415 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PBGA-B36

  • Length:

    2.96 mm

  • Linearity Error-Max (EL):

    0.003815%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL, PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA36,6X6,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    0.56 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.96 mm

AD4698BCBZ-RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from each other. Additionally, use a low-ESR capacitor for the VDD pin and a 0.1uF capacitor for the AVDD pin. Refer to the AD4698 evaluation board layout as a reference.
  • The AD4698 has a flexible architecture that allows for various gain settings and filter options. To configure the device, start by selecting the desired gain setting using the GAIN pin, then choose the appropriate filter configuration using the FLT pin. Consult the datasheet and application notes for specific guidance on configuring the device for your application.
  • The maximum input voltage for the AD4698BCBZ-RL7 is ±VREF (typically ±2.5V). Exceeding this voltage can cause the device to saturate, leading to reduced accuracy and potential damage. Ensure that the input signal is within the specified range to maintain optimal performance.
  • The AD4698BCBZ-RL7 has a high common-mode rejection ratio (CMRR), which allows it to reject common-mode voltages up to ±VREF. However, it's essential to ensure that the common-mode voltage is within the specified range to maintain optimal performance. Consult the datasheet for specific guidance on common-mode voltage handling.
  • The AD4698BCBZ-RL7 has a maximum junction temperature (TJ) of 150°C. To ensure reliable operation, ensure good thermal dissipation by using a heat sink or a thermally conductive PCB material. Consult the datasheet for thermal resistance values and follow proper thermal design practices.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD4698BCBZ-RL7 Overview

Use the download button to access the AD4698BCBZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD469, or try a keyword search, such as Analog to Digital Converters
