AD4698BCPZ - Analog Devices

Description: 16-Bit, 8-Channel, 1 MSPS, Easy Drive Multiplexed SAR ADC

Download AD4698BCPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

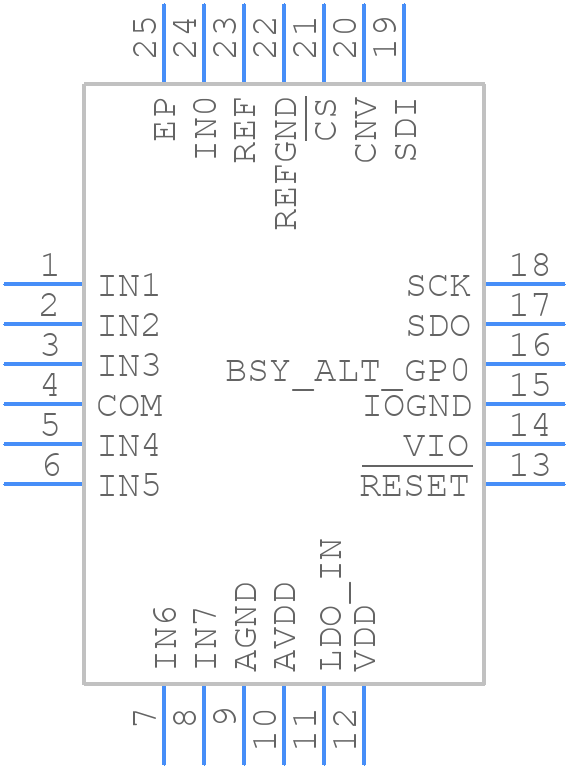

Symbol
AD4698BCPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD4698BCPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Lead Lead Frame Chip Scale Package [LFCSP] 4 mm × 4 mm Body and 0.75 mm Package Height (CP-24-8)
click to zoom
3D Models
AD4698BCPZ - Analog Devices - 3D model - Quad Flat No-Lead - 24-Lead Lead Frame Chip Scale Package [LFCSP] 4 mm × 4 mm Body and 0.75 mm Package Height (CP-24-8)
click to zoom

AD4698BCPZ Details

  • Manufacturer Part Number:

    AD4698BCPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-8

  • Country Of Origin:

    South Korea

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    2.6 V

  • Analog Input Voltage-Min:

    -2.4 V

  • Conversion Time-Max:

    0.415 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.001525%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    8

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL, PARALLEL, WORD

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    1 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

AD4698BCPZ Frequently Asked Questions (FAQs)

  • A good layout and routing practice for the AD4698BCPZ involves separating the analog and digital sections, using a solid ground plane, and keeping the analog input traces short and shielded. Additionally, it's recommended to use a low-ESR capacitor for the VDD pin and to decouple the VDD and VSS pins with a 10uF capacitor.
  • To optimize the AD4698BCPZ for low power consumption, it's recommended to use the lowest possible clock frequency, disable the internal reference voltage, and use the power-down mode when not in use. Additionally, using a low-voltage power supply and minimizing the analog input signal amplitude can also help reduce power consumption.
  • The maximum sampling rate of the AD4698BCPZ is 1 MSPS, but it can be limited by the clock frequency, analog input signal bandwidth, and the system's noise floor. It's recommended to consult the datasheet and application notes for more information on achieving the highest possible sampling rate.
  • The AD4698BCPZ has an internal calibration mechanism that can be used to optimize accuracy. It's recommended to follow the calibration procedure outlined in the datasheet, which involves applying a known input voltage and adjusting the internal calibration registers to achieve the desired accuracy.
  • The recommended operating temperature range for the AD4698BCPZ is -40°C to +125°C, but it can be limited by the specific application and the device's power supply voltage. It's recommended to consult the datasheet and application notes for more information on operating temperature range and thermal management.
