AD5445YRUZ-REEL7 - Analog Devices

Description: 12 Bit Digital to Analog Converter 1 20-TSSOP

Download AD5445YRUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

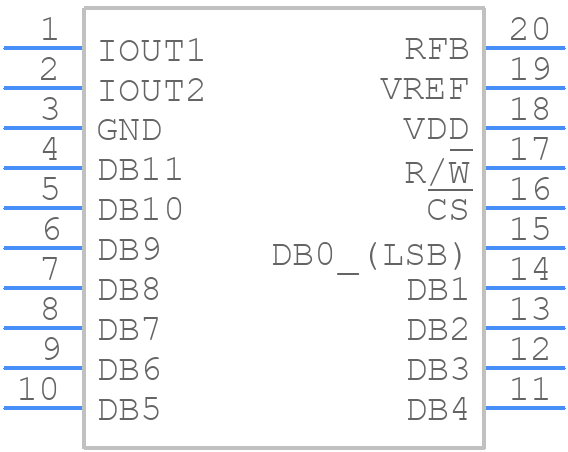

AD5445YRUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5445YRUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-20 (TSSOP)_2025
click to zoom
3D Models
AD5445YRUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-20 (TSSOP)_2025
click to zoom

AD5445YRUZ-REEL7 Details

  • Manufacturer Part Number:

    AD5445YRUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AC, TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    RU-20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Settling Time-Max:

    0.12 µs

  • Settling Time-Nom (tstl):

    0.03 µs

  • Supply Current-Max:

    0.005 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

AD5445YRUZ-REEL7 Frequently Asked Questions (FAQs)

  • For optimal performance, it's recommended to follow a 4-layer PCB stack-up with a solid ground plane, and to use thermal vias to dissipate heat. A heat sink or thermal pad can also be used to improve thermal management.
  • To ensure accurate voltage output and minimize noise, use a low-noise voltage reference, decouple the power supply with capacitors, and use a quiet analog ground plane. Additionally, consider using a shielded cable and a low-pass filter to reduce noise.
  • The recommended calibration procedure involves applying a known input voltage, measuring the output voltage, and adjusting the internal calibration registers to achieve the desired output voltage. Refer to the datasheet for specific calibration procedures and equations.
  • The AD5445YRUZ-REEL7 can be interfaced with a microcontroller or FPGA using a serial interface such as SPI or I2C. Ensure that the interface voltage levels are compatible, and use a level shifter if necessary. Refer to the datasheet for specific interface timing and protocol requirements.
  • The AD5445YRUZ-REEL7 is manufactured by Analog Devices Inc, which adheres to strict quality and reliability standards, including ISO 9001 and AEC-Q100. The device is also qualified for automotive and industrial applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5445YRUZ-REEL7 Overview

Use the download button to access the AD5445YRUZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD544, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
