- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD574AJN
- Part Number AD574AJN
- Manufacturer Analog Devices
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages

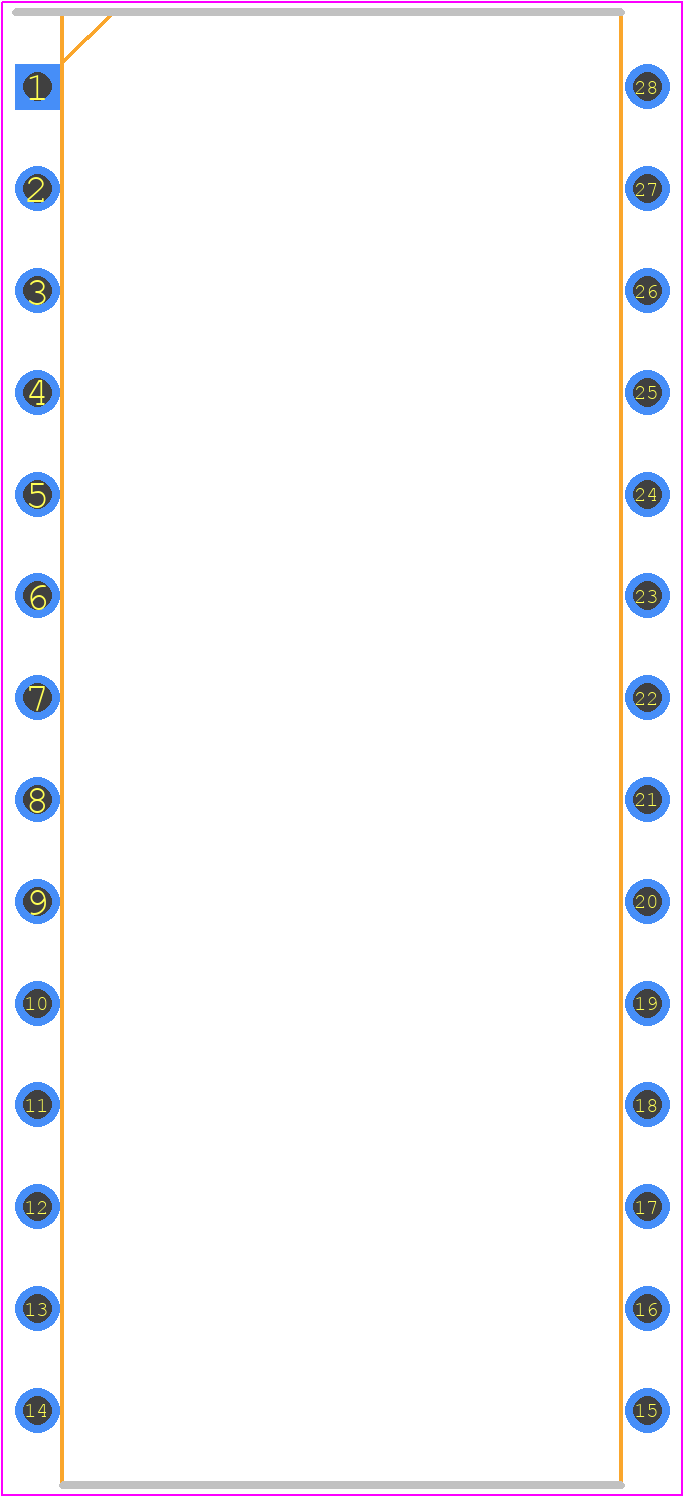

- Footprint Name Dual-In-Line Packages - N-28-4_
- Released Date May 21, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD574AJN Details
-
Manufacturer Part Number:
AD574AJN
-
Source Url Status Check Date:
2013-05-01 14:56:14.619
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
DIP
-
Package Description:
DIP-28
-
Pin Count:
28
-
Manufacturer Package Code:
N-28-2
-
HTS Code:
8542.39.00.30
-
Manufacturer:
Analog Devices Inc
AD574AJN Frequently Asked Questions (FAQs)
-
The recommended power-up sequence is to apply the analog power supplies (VCC and VEE) before applying the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
-
To ensure accurate conversions, it is essential to provide a clean and stable power supply, use a low-noise analog input signal, and ensure that the reference voltage is stable and accurate. Additionally, proper PCB layout and grounding techniques should be followed to minimize noise and interference.
-
The maximum sampling rate of the AD574AJN is 100,000 samples per second. However, this rate can be affected by the clock frequency, conversion mode, and other factors, so it's essential to consult the datasheet and application notes for specific guidance.
-
Yes, the AD574AJN can be used in a multiplexed mode, where multiple analog input channels are connected to the converter through an analog multiplexer. However, this requires careful consideration of the multiplexer's switching time, settling time, and other factors to ensure accurate conversions.
-
The AD574AJN has built-in overvoltage protection, but it's still essential to ensure that the input voltage does not exceed the maximum rating. If an overvoltage condition is anticipated, consider using external protection circuitry, such as voltage limiters or clamp circuits, to prevent damage to the converter.
Trust Checks
Community Provided
System Verified
Community Approved
AD574AJN Overview

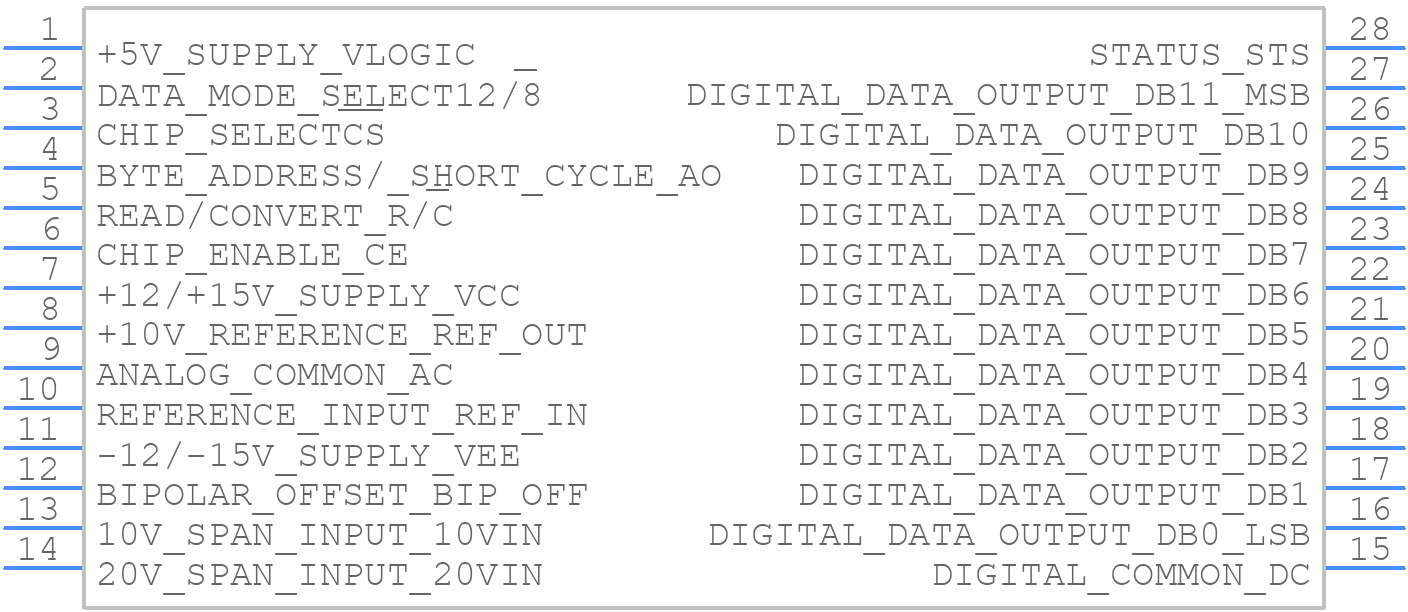

Use the download button to access the AD574AJN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD574,
or try a keyword search, such as Analog to Digital Converters
